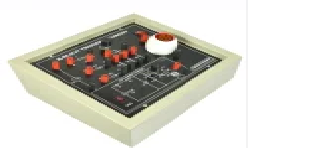

R, RC and UJT Triggering Circuit Trainer Kit

Phase Single Phase Model Name/Number PEL-PWR-R-RC-UJT Type Analog Usage/Application Training, Research and Lab Kit Automation Grade Manual Enclosure Type Attractive powder coated cabinet with front panel. Frequency 50Hz Power 500W Voltage 230V AC Current 1A Brand Pantech Country of Origin Made in India This R, RC and UJT Triggering Circuit Kit has SCR, AC Source Voltage, Power Diodes, Triggering Pulse unit, Lamp Load and Fused Protection. Here R, RC and UJT Triggering Circuit using thyristor can be formed for the various values of firing angle. The Lamp load illumination variation for various firing angle helps to compare the voltage variation visibly. FEATURES DSO can be used to analyze the pulse and waveforms. Inbuilt Triggering pulse for Thyristor. Inbuilt Stepdown power supply. All Components are terminated with a connector for the study of Students. One Potentiometer is provided for varying the Firing angle for UJT firing. Another potentiometer used to vary the firing angle of R, RC- firing. Power ON indication Switch for separate input to power circuit and triggering module. All the important points are terminated with banana connector for monitor/measure/ study the signals using any one of measuring equipment’s. Experiments: Design of SCR based firing scheme using R method. Design of SCR based firing scheme using RC method. Design of SCR based firing scheme using UJT method. POWER Required 1Phase AC : 230V/2A/50Hz Kit SPECIFICATIONS Input : 100V AC Current : 1A Frequency : 50 Hz input. Firing Angle Variation : as per firing scheme BUNDLE CONTENTS R, RC and UJT Triggering Circuit Kit Patch Cords Required 3Pin 6A Power Supply Cord 1A Fuse Extra User Manual Matlab Simulation File 60W Lamp
