3Phase Inverter Card
Load Capacity <500VA
Brand Pantech
Board Type Single layered
Compatible Inverter Brand Pantech
Usage/Application Training, Research and Project
Current 3A
Voltage (10-200)V AC/DC
Part No PEL-MODULE-3PH-INV

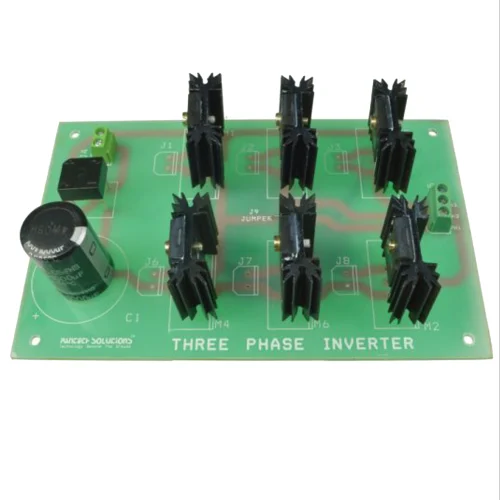

This 3Phase Inverter Card includes 1Phase Bridge Rectifier, Filtering Capacitor and Power switching devices with Heat Sink. These components form single phase AC rectifier with filtered DC to power the three phase inverter circuit for any applications.
Specification
6Nos of IRFP250 MOSFET with Heatsink
Current Rating Supported as per the Switching Device Datasheet.
Single Phase 5A Bridge Rectifier.
DC Filtering Capacitor as per the Voltage range.
Fused protection for the unit.
Input and Outputs are terminated with PTB Connectors.
Additional Information:
Production Capacity: 10
