Established in the year 2014, we Oscarwin Weaving Engineering are the leading manufacturer and importer of a wide range of Rapier Loom, Electronic Jacquard, Velvet Loom Machine, Fabric Shearing Machine, etc. Based on advanced technology, our range is appreciated for its long service life, high performance and low power consumption. These machines are in accordance to the industry parameters and high in operational qualities. Our team of professionals also keeps a tab on the current market inclinations, so as to be ahead of times. Furthermore, our quality conscious accompanied with client-centric approach has enabled us in retaining our credibility amongst the competitors.
Preview
Plot No. 7302/3, Sachin GIDC,,Road No. 73/A,,
Surat - 394230
Surat - 394230
Contact Details

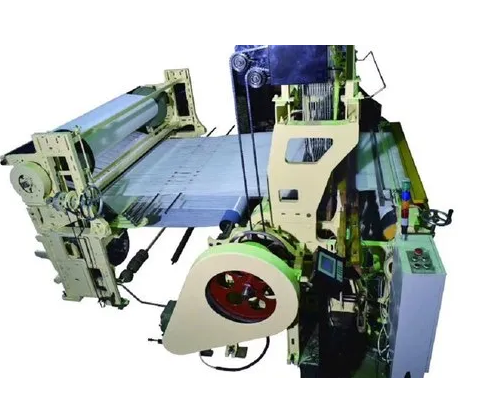

2HP Velvet Loom Machine
VELVET LOOM
Technical Specification
Working Width : 150/170 cm
Process Speed : 150/170 rpm
It can Weave all Kind of Velvet such as Mulberry
Silk Georgette, Polyester and Nylon Velvet.
Loom's front body with Beam Shaft Install Dobby and
back Machine can Install pile yarn Beam and base yarn Beam Drive and Break : 1KW Single Moter Drive
Shedding Mechanism : Dobby Shedding or Outside the Tappet Motion with 10-16 PCS Heald frame.
Yarn let off & take up : Mechanical / Electrical
Batching device : Positive, gear type
Pile yarn let off : Positive Quantitative Yarn Let Off
Can Install Electrical Jacquard
Dimension: 3.1 x 3.3 x 2.5m
Weight : 2000 / 2200 kg
