Nextgen Steel And Alloys
Known for manufacturing, importing and exporting a wide range of supreme quality Chemicals, Paper Industries, Sugar Industries and Textiles, Nextgen Steel & Alloys was established in the year 2012. Offered product range comprises of Pipes & Tubes, Seamless & Welded Butt Weld Fittings and Screwed & Socket Weld Forged Steel Fittings. The material which is best in the market, is used for designing these products. By using top notch machinery, our team members precisely engineer these products in adherence to the industry set standards and norms. The easy fitting, fine finish, dimensional accuracy, sturdy construction, resistance to corrosion and optimum durability of these products make them highly demanded in the market. Offered products are available with us at budget friendly prices.
Preview
47, Navnidhi Lane, Shop No. 2-5th Kumbharwada Lane,,
Mumbai - 400004
Mumbai - 400004
Contact Details

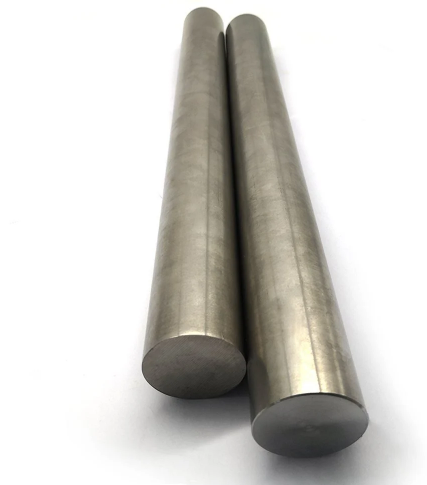

S1 Tool Steel
Shock Resistant Tool Steel (S1) z Equivalent Grade GMTC AISI DIN S1 S1 1.2542 z Chemical Composition (wt %) GRADE C Si Mn P S Cr Mo V W S1 0.40 0.55 0.15 1.20 0.10 0.40 MAX 0.030 MAX 0.030 1.00 1.00 MAX 0.50 0.15 0.30 1.50 3.00 z Characteristics 1.High Impact Resistance 2.Combining Moderate Hardness With Good Toughness 3.High Hardenability z Application Pneumatic Tools???Shear Blades???Pipe Cutter Wheels???Shear Knives Hot Swaging Dies???Hot Punch Tools z Heat Treatment 1.Annealing—Heating slowly and uniformly to 790~830???, furnace cooling to 510??? at a rate 8~15???/h. Hardness max. HB 229 2.Stress Relieving — Heat to 650~675???, furnace cooling. 3.Hardening— Preheating: Warming to approx. 650???, holding 20 minutes per 25 mm. Austenitizing: Heating to 900~9550???, holding 20 minutes per 25 mm. Quenchant: By oil. 4.Tempering— Heating to 205~650???, holding 30 minutes per 25 mm. Air-cooling. Hardness HRC 58 to HRC 40
Mumbai - Maharashtra
