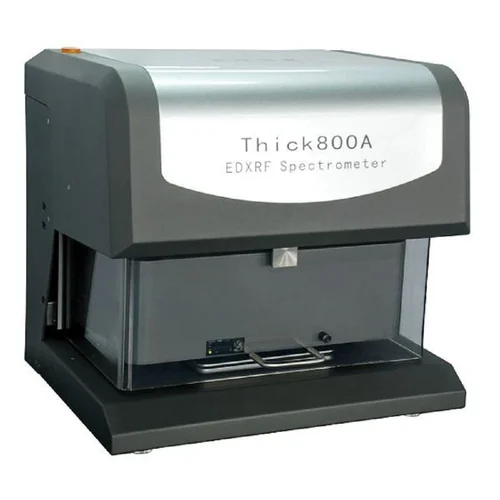

Skyray Thick 800 Plating Plating Thickness Tester
Type Thickness Tester
Model Name/Number Thick 800A
Usage/Application Laboratory
Material ABS
Power Source Electric
Weight 70 Kg
Color Gray
Frequency 50 Hz
Brand Name Skyray
Voltage 240 V
Instrument introduction Thick800A incorporates Skyray's many years in plating thickness measurement with full-auto software operation, multi-point testing, software controlling the instrument and movable platform.
Plating Thickness Tester Instrument introduction
Thick800A Plating Thickness Tester incorporates Skyray's many years in plating thickness measurement with full-auto software operation, multi-point testing, software controlling the instrument and movable platform. It is a powerful instrument equipped with special software and widely applied in plating industries.
Performance characteristics Plating Thickness Tester
Top-lightening
Test parts can be lifted up and down
High-precision moveable platform
Small collimator
High-resolution detector
Visual operation
Auto locate height
Auto search spot
Mouse locates the test point
Well ray shielding
Super large chamber design
Safe protection of test interface
Technical specifications
Model: Thick 800A Plating Thickness Tester
Analytical range: from S to U
Simultaneous analysis of at most 24 elements or coating of above 5 layers
Detection limit: 2ppm, analytical content: 2ppm to 99.9%
Coating thickness: 0.005um minimum, within 20um (it depends on different materials)
Micro collimator (minimum diameter: 0.1mm), test spot (within 0.2mm)
High-precision movable platform (position accuracy: below 0.005mm)
Arbitrary multiple optional analysis and identification models
Independent matrix effect correction models
Repeatability of multiple analyses reaches 0.05um (outermost layer Au below 1um)
Working stability over a long period: 0.1um (outermost layer Au below 1um)
Temperature range: 15℃ to 30℃
Power: AC220V±5V, AC purified stabilized voltage power is recommended
Size: 576×495×545 mm
Weight: 90kg
