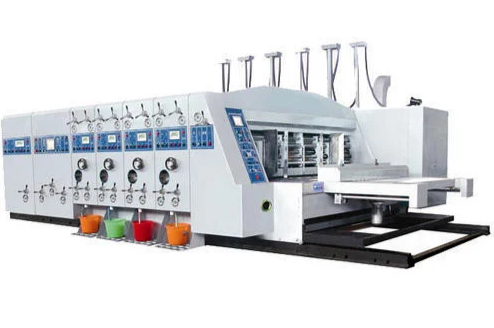

Flexo Carton Printing Die Cutting Machine

Chain Feeder 2/3/4 color Flexo Carton Printing Die Cutting Machine color printing and die cutting machine technical information. Specifications: Mechanical speed: 65 pcs/min Normal work speed: 40-50 pcs/min Max feeding size (mm): 1450×2250 Min feeding size (mm): 350×350 Max die cutting area: 1450×2050 Other Details: Semi-automatic chain-feeding, each unit electrically separates and combines, pneumatic locking, relax, alarm, lights prompt. The upper feeding axis 85 mm, outer diameter is 113 mm, the down feeding axis 124 mm, the surface is plated hard chromium. the feeding gap is adjusted by cross slide 0~ 12 mm. Printing roller: 451 mm, surface is grinded and plated hard chrome, and balanced corrected. Electric phase and Digital control Printing press roller outer diameter 124 mm, surface is grinded, plated hard chrome, balanced corrected and run steady. Printing gap is adjusted by cross slide and range 0~ 12 mm. Steel anilox roller outer diameter 152.5 mm, surface is grinded, press anilox, net mesh number is 220 lines / inch, plated hard chrome Rubber roller outer diameter 152.5 mm, wear-resistant rubber surface.rubber roller is special grinded pressing line roller 85 mm, hard chrome plating after surface grinding, the upper and lower pressing line roller 152 mm and surface is plated hard chromium. Pressing line wheel is adjusted by cross slide and the range 0 ~ 12 mm. Die cutting unit slotting) Die cutting roller outer diameter 410 mm, rubber pad roller outer diameter 388.9 mm, hard chrome plating after surface grinding, Static and dynamic balance correction, good operating stability. Automatic separate oneself from cutting die device, in order to protect the rubber pad, prolong the service life of rubber pad. Rubber roller is equipped with a mechanical cam type transverse 58 mm floating device, prolong the service life of rubber pad. Phase adjustment device, can realize the digital electric adjustment of 360 degrees, die-cutting roller transverse moving device, the whole distance is 15 mm. Differential compensating device, that can control the line speed on the surface of the rubber pad roller, (in the using process, rubber pad diameter becomes smaller) compensation device can make line speed of the rubber pad roller completely control by the knife mold ,thus the die-cutting carton, carton box and knife mold shape are identical. Rubber pad grinding device, that can design a number when work for die cutting, that can start up the rubber roller motor when need grinding pad, (host machine is open) for grinding, can make the rubber pad used repeatedly, improves the pad use rate, reduces the die-cutting pressure and reduces greatly the wear of the other parts and bearings. Slotting roller is equipped with slotting device, synchronize manually adjust the height of the box, manual move the knife(adjust the length, width of the box). slot Knife width is 7 mm, cutting edge width is 50 mm, that can save the customer's cost of die plate. Drive gear adopts 45 # steel, high-frequency quenching after tempering that improve the gear Strength and abrasion resistance. gear pump oil lubrication Harbin bearing, wafangdian bearing, zhengtai electric.
