N-Gravetek
N-Gravetek manufactures 3-axis, 4-axis & 5-axis CNC Engraving & Micro-Milling Machines. Founded in 2008 in a small rented apartment of 700 sq. ft. in heart of Nashik city; we have now grown to a 10000 sq. ft. premises located in Satpur MIDC. We have wide range of products and services with unmatched industry expertise to enable our customers meet their challenges in 3-axis, 4-axis and 5-axis applications. Our Engraving Micro-Milling Machines are most suitable for moulds which require work with high precision.
Preview
MIDC, Street No. 10, Satpur, Behind Shyam-Sundar Hotel,Kamgar Nagar, Nashik,
Nashik - 422007
Nashik - 422007
Contact Details

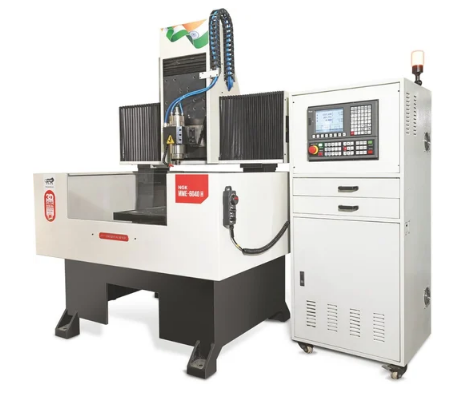

Cnc Milling Engraving Machines
X-Y Axis Working Area 400 x 600 mm
Z Axis Working Area 300 mm
Model NGK - MME - 6040H
Machine Type 3 Axis
Job Material Brass, Aluminium, Aluminium Composite Panel (ACP), Copper, M.S, OHNS, WPS, Acrylic, Plastic
Spindle Head Type Single Spindle
Maximum Engraving Speed 8000 mm/min
Maximum Working Speed 15000 mm/min
Spindle Speed 24000 RPM
X-Y Movement Linear Motion Guide
Z Movement Ball Screw Transmission
Cutting Tool Diameter 12 mm
Repositioning Accuracy 0.020 mm
Command Code G Code, ISO G-Code, G Code*u00.mmg*.plt
Driven Motor Servo Motor
Control System Delta
Cnc Milling Engraving Machines
Nashik - Maharashtra
