Munsha Udyog (India)
Established in 2007, Munsha Udyog (India) is involved in the area of manufacturing a broad plethora of Plate Bending Machine, Press Brakes, etc. In their development process, we assure that only top notch material is used by our professionals along with modern machinery. Besides this, we check these on a variety of grounds before finally shipping them at the destination of our customers.
Working under the mentorship of Mr.Gurvinder Singh, we have acquired a reputed stature in the industry.
Preview
Kila No.23/V.P.O Nathupur,Munsha Udyog India,Nathupur,Sonipat,,Nathupur Industrial Area, Sonipat,
Sonipat - 131001
Sonipat - 131001
Contact Details

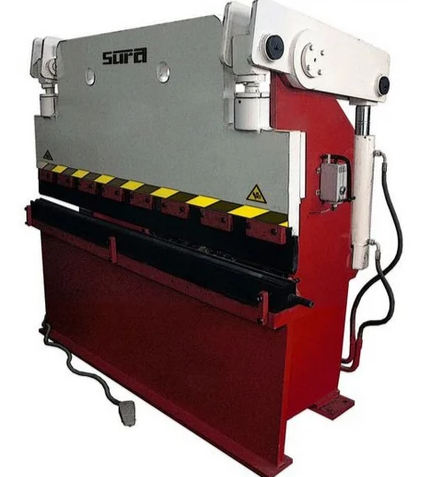

Hydraulic Press Brakes
Automatic Grade Manual, Semi-Automatic
Max Force or Load 30 - 150 ton
Control Type Non-CNC
Max Sheet Width 3 meter
Model HYD PB
Brand SURA
Die Space 250mm
Input Volatage 415 V
Capacity 1~20mm
Hydraulic Press Brake is used to make bends in sheet at various angles. Machine is available in Hydraulic as per bending capacity range. Machine ram is guided with Gun metal bushes and liners to provide smooth bending and even load distribution on job. s. Machine is designed with an interlocking steel frame, which ensures longer stability. Machine has Several other features to assist ease of work.
Salient features:
All steel construction with interlocked frame
Gun metal bushes and liners
Elec. motor make KIRLOSKAR/NGEF/CROMPTON
Starter of L&T/BCH make only
Carbon steel die punch
Std. V punch and die set is provided with machine.
Goose neck or other Punch designs at extra cost.
Centralized lub pump
Yuken/Dowty/Hitech hydraulic pump
Control valves of reputed make
Rear mounted cylinders for low working pressure.
Inch-single-continuous cycle with foot switch.
Punch Depth and travel setting with limit switches.
Sonipat - Haryana
