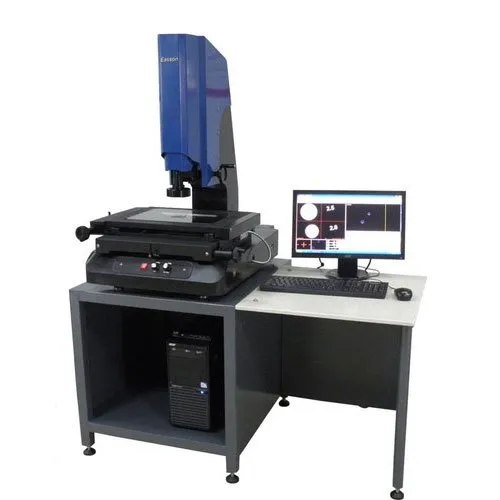

MT RV-3020 Vision Measuring Machine
Brand MT
Resolution 0.1 High Accuracy Reading Scale
Accuracy 99%
Model Name/Number RV-3020
Phase Single
Machine Weight 280 kg
Max Table Load 30kg
Light Source System Software Controlled 8 Zone Surface Light and Straight Contour light
Magnification Optical Enlarging Rate 0.7-4.5x, Image Enlarging Rate 30-200x
Vision System 1280x1024 High Resolution 1/2" industrial camera
Back Light LED Telecentric
Lens High Precision Tele Centric Zoom Lens with Electrical Sensor
Ambient Conditions 40 Degree Celsius
X,Y,Z Travel 300x200x200mm
Size 140x92x175 mm
Products Description
RV series vision measurement machine with big granite base and guider way, worktable have better load ability, make sure high stability, on another hand installed with 0.1µm high resolution high accuracy glass transducer, make sure detect every tiny movement. RV series vision measurement machine have good perpendicularity adjustment, make sure machine have good space accuracy, even the parts have height difference still have good measurement accuracy. Together with Z axis Auto focus, 1.3M pixel high resolution industrial camera, 0.1µm high accuracy glass transducer make clear image, high accuracy reading and high measurement accuracy.
