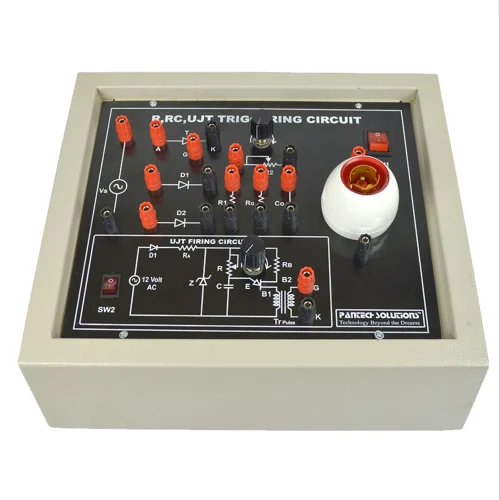

R, RC and UJT Triggering Circuit Trainer Kit
Phase Single Phase
Model Name/Number PEL-PWR-R-RC-UJT
Type Analog
Usage/Application Training, Research and Lab Kit
Automation Grade Manual
Enclosure Type Attractive powder coated cabinet with front panel.
Frequency 50Hz
Power 500W
Voltage 230V AC
Current 1A
Brand Pantech
Country of Origin Made in India
This R, RC and UJT Triggering Circuit Kit has SCR, AC Source Voltage, Power Diodes, Triggering Pulse unit, Lamp Load and Fused Protection.
Here R, RC and UJT Triggering Circuit using thyristor can be formed for the various values of firing angle. The Lamp load illumination variation for various firing angle helps to compare the voltage variation visibly.
FEATURES
DSO can be used to analyze the pulse and waveforms.
Inbuilt Triggering pulse for Thyristor.
Inbuilt Stepdown power supply.
All Components are terminated with a connector for the study of Students.
One Potentiometer is provided for varying the Firing angle for UJT firing.
Another potentiometer used to vary the firing angle of R, RC- firing.
Power ON indication Switch for separate input to power circuit and triggering module.
All the important points are terminated with banana connector for monitor/measure/ study the signals using any one of measuring equipment’s.
