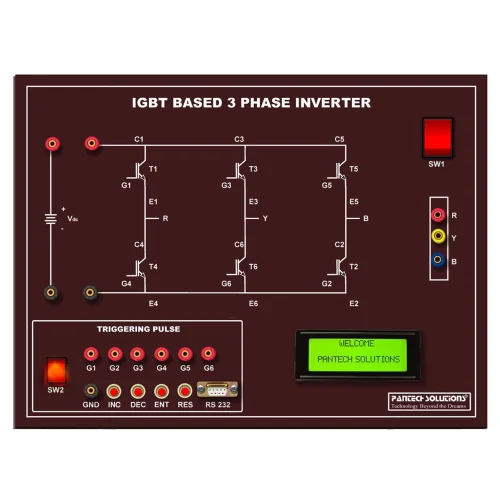

IGBT Based Three Phase Inverter Trainer Kit
Brand Pantech
Board Type Double layered
Material Attractive powder coated cabinet with front panel.
Application/Usage Training, Research and Lab Kit
Part No PEL-PWR-3PH-IGBT-INV
Current Rating 2A
Voltage 140V DC
This IGBT Based Three Phase Inverter Kit has IGBT, DC Source Voltage, Inbuilt Triggering Pulse unit, LCD Display Unit, 3Ph Lamp Load and Fused Protection.
Here Three Phase Inverter using IGBT is formed for the different Frequency. 120degree, 180degree and SPWM method can be analysed using this kit. Pulse generation is done using Digital Controller.
FEATURES
DSO can be used to analyze the pulse and waveforms.
Inbuilt Switching pulse from Driver unit for IGBT.
Inbuilt Stepdown power supply.
All Components are terminated with a connector for the study of Students.
3No`s of Push switches are provided to select the PWM Modes and Frequency.
LCD Display unit is provided to display the modes of operation.
Power ON indication Switch for separate input to power circuit and triggering module.
All the important points are terminated with banana connector for monitor/measure/ study the signals using any one of measuring equipment’s.
