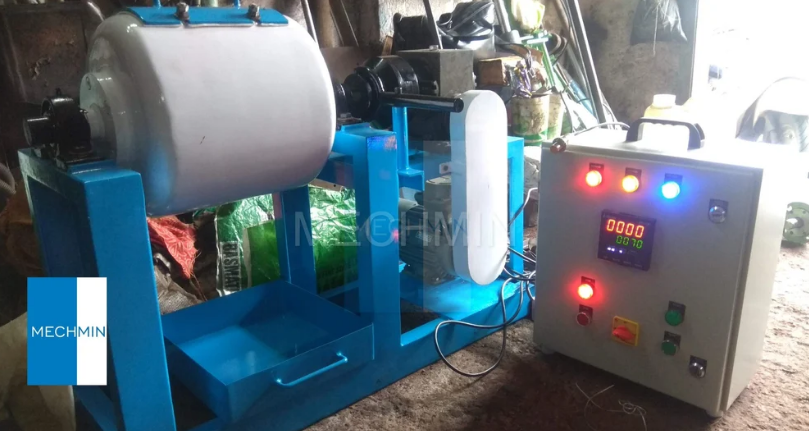

Bonds Work Index Ball Mill
Capacity 5 Kg
Usage/Application Laboratory
Material Mild Steel
Type Bond work index type as per ASTM
Power 1 Hp 3 Phase
Ring Diameter 305mm ID x 305mm IL
Weight 150 Kg
Drive Power VFD 1 Hp
Packaging wooden packind
Features revolution counter for 70 revolution and more
Power Source 1 hp Brake motor
MECHMIN engineered Ball Mill consists of a cylindrical shell with Curved end flanges Welded to the shell.. Mill is supported on 2 nos. Double Row Spherical Roller Bearings by 2 nos. shafts welded to the end flanges and stiffened with gussets. The above assembly is placed on Cast Iron bearing housings. The Mill is provided with manhole with lid and another lid with perforation is supplied for discharging the ground materials while retaining the grinding media inside. The entire assemble is placed on a M.S. structure. Mill is driven by Brake motor, coupling and AC Control drive
Request
Callback
Additional Information:
Delivery Time: 30Days
