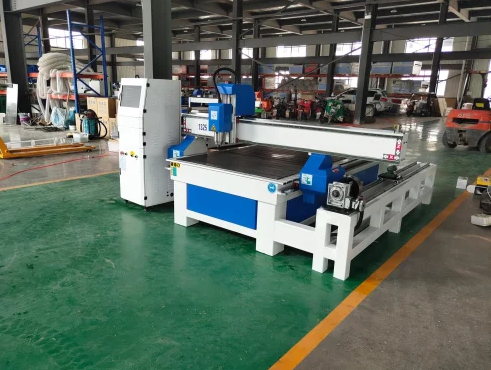

1325 3d Carving Wood Cnc Router Machine IN INDIA
Product Details:
Minimum Order Quantity 1 Piece
X-Y Axis Working Area 1300 x 2500 mm
XY Axis Working Area 1300 x 2500 mm
Z Axis Working Area 300 mm
Spindle Power 4.5 kW
Model MAURA CNC
Machine Type 4 Axis
Spindle Head Type Single Spindle
Maximum Cutting Speed 28000
Spindle Speed 28000RPM
Repositioning Accuracy .0
X-Y Movement Rack & Pinion Transmission
Z Movement Ball Screw Transmission
Cutting Tool Diameter bits
Repeated Location Bangalore
Driven Motor Stepper Motor
Control System DSP
Machine Dimension 1325
Machine Weight 1500
Country of Origin Made in India
Job Material Plastic, MDF, HDF, PVC, Plywood, Wood, Sign Board, Acrylic, Foam Board
Command Code G Code*u00.mmg*.plt, HPGL
Description
X,Y,Z Working Area : MT : 1325 /1530/2040
1300x2500x300mm
Table Struture : Heavy Duty Lath Body
Software Environment : Windows xp/7/8/10
X,Y Structure : Gear Rack made in Taiwan Z Axis German Ball screw
Z Structure : Taiwan PMI Linear Guide Taiwan TBI Ball Screw
Spindle Power : HSD/HQD Spindle 3.5/4.5/6w
Spindle Speed : 0-18000/24000RPM
Drive Motors : 850W Japan YASKAWA/YAKO, Servo Motor & Stepper Drive
Working Voltage : 220w Single phase, 380V 3 Phase, 50Hz
Operating System : DSP/NC Studio /NK
Running Environment Temperature : 0-45 Centigrade
