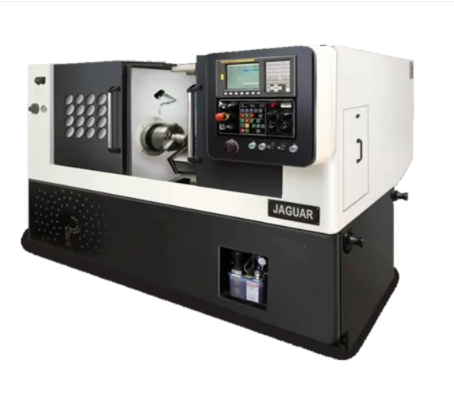

Pride Cnc Jaguar - Turning Center

Features: Rigid Cast Iron Structure Roller LM guide ways on both Axes Longer strokes Programmable tailstock quill as a standard feature Technical Specification Distance between Centers : 500 mm Max Turning Dia : 350 mm Max Turning Length : 500 mm Swing Over Bed : 500 mm Swing Over Carriage : 230 mm MAIN SPINDLE Spindle Nose : A2-6 Bore Through Spindle : 63 mm Bar Capacity : 51 mm Chuck Size : 200 mm Front Bearing Bore : 100 mm SPINDLE DRIVE Spindle Motor Power : 7.5/11 KW Speed Range : 50-3000 RPM X Axis Stroke : 185 mm Z Axis Stroke : 500 mm Rapid Traverse : 20 m/min Tailstock Quill Diameter : 80 mm Quill Stroke : 100 mm Taper in Quill : MT-4 Tailstock body Travel : 450 mm Turret Turret Type : BTP-80 No of Station : 8 OD Turning Toolsize : 25X25 mm Max Boring Bar Size : 40 mm CNC System - Fanuc / Siemens or Mitsubishi
