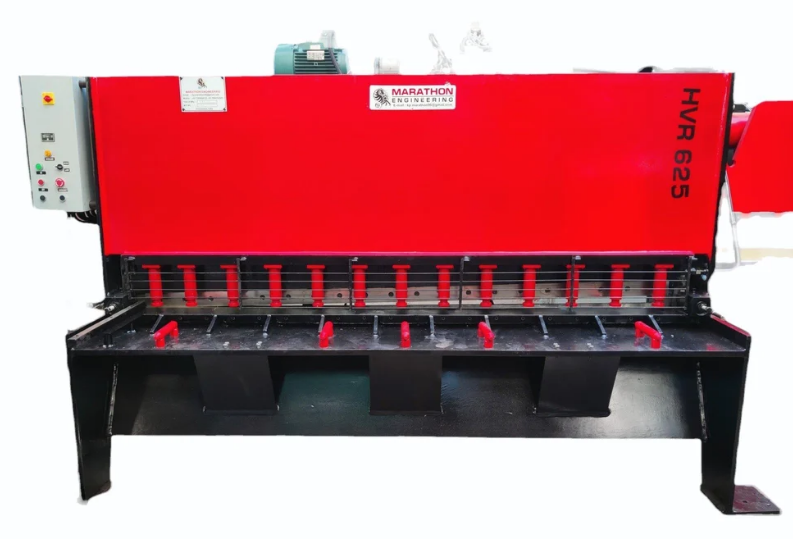

Hydraulic Plate Shearing Machine

Capacity(T) 50 Ton Max.Shearing Width 2000 mm Material Mild Steel Usage/Application Cutting Metal Bars And Sheets That You Otherwise Would Find Difficult To Cut. Product Type Hydraulic Shearing Machine Voltage 220 V Warranty 1 Year Frequency 50 Hz Brand Marathon Engineering Country of Origin Made in India Minimum order quantity: 2 Piece Hydraulic Shearing Machine to our clients. Hydraulic shearing machine is designed to cut sheet metal and plates with precision using a hydraulic mechanism. Below is a typical specification framework for such machines. The specifications will vary based on the model, manufacturer, and application. General Specifications Shearing Capacity Material Thickness: e.g., 4 mm, 6 mm, 10 mm, 20 mm, etc. Material Length: e.g., 1250 mm, 2500 mm, 4000 mm, etc. Material Type: Mild steel (MS), stainless steel (SS), or aluminum. Blade Type and Angle Blade Material: High-carbon high-chrome steel or alloy steel. Blade Length: Matches the cutting width of the machine. Shearing Angle: Adjustable, typically 1°–3°, to reduce distortion in sheets. Power System Hydraulic System Pressure: Specified in bar or MPa (e.g., 20 MPa). Motor Power: Varies based on machine size, e.g., 5 HP, 10 HP, 20 HP, etc. Stroke and Speed Stroke Per Minute (SPM): Cutting strokes, e.g., 10–30 SPM. Ram Stroke Adjustment: Range of stroke adjustments for optimized cuts.
