Mahendra Tools & Machines India Private Limited
Established in the year 1999, at Mumbai (Maharashtra, India), we, “Mahendra Tools & Machines India Pvt. Ltd.,” are renowned manufacturer, wholesaler, trader and supplier of an exclusive range of Magnetic Drilling Machines, Portable Hydraulic Puncher, Beveler & Chamfering Machine, Needle Chisel Scaler, Pneumatic Right Angle Grinders, Industrial Pneumatic Sander and Boring Drill Machine etc. Theses products are precisely designed in accordance with the set international standards using high grade factor inputs to ensure optimum quality at clients’ end. Further, the raw materials we use to manufacture these products are procured from reliable sources of the industry. We offer entire range in various specifications and can be customized as per the specific requirements of the clients. Low maintenance, optimum quality, compact design, corrosion and longer service life, these are some features of our offered products. Owing to high quality features, these are extensively demanded among our precious clients.
Preview
B-1/205, Green Land,,JB Nagar, Andheri East, Mumbai,
Mumbai - 400059
Mumbai - 400059
Contact Details

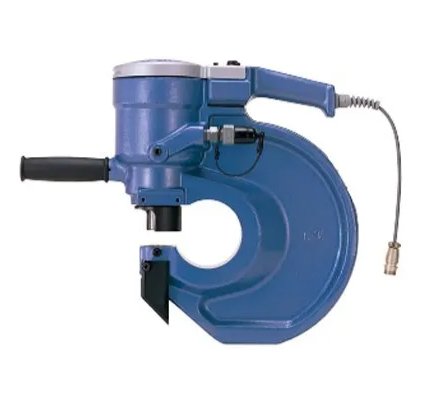

HS11-1624 Portable Double Acting Hydraulic Puncher
Hole Making Returhing Time 5.7 sec
Mass Weight 30 kg
Mild Steel Punching Diameter 24 mm
Stainless Steel Punching Diameter 24 mm
Mild Steel Punching Thickness 16 mm
Stainless Steel Punching Thickness 6 mm
Hole Making Punching Time 11.8 sec
Ram Stroke 25 mm
Allowable Max Pressure 68.65 (700) MPa (kgf/cm2)
Max Output 464 (47) kN (tf)
Max Throat Depth 110 mm
Model HS11-1624
We deal in HS11-1624 Portable Double Acting Hydraulic Puncher. Double acting hydraulic system allows automatic and inching (manual mode) operation. Applicable for both mild steel and stainless steel punching.
Mumbai - Maharashtra
