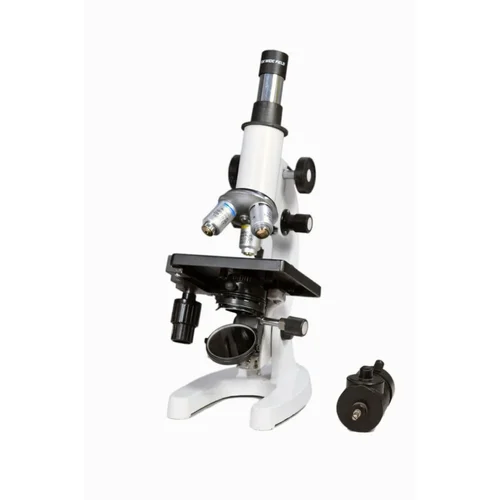

Medical Microscope Moveable Condenser

Magnification 100x Resolution 1280x720 pixels (HD) Usage/Application Hospital Model Name / Number DRICON Model Name/Number SS-300 Material Mild Steel Features Moveable Condenser Warranty 1 Year I Deal In New Only Country of Origin Made in India TECHNICAL SPECIFICATION✓ EYE-PIECE Extra wide field 10X eye-piece specially designed for ultra series ISIMicroscope.✓ NOSEPIECE Triple revolving nosepiece with click stops.✓ STAGE Built in graduated mechanical stage having size of 135mm X 120mm, which iscontrolled by two separate knobs for easy scan of slide or Coaxial mechanical stage.✓ FOCUSING By vertical movement of the observation tube with coarse adjustmentusing rack-pinion movement and fine motion by screw level mechanism having agraduated knob.✓ CONDENSER Abbe condenser having numerical aperture of 1.25 with IRIS diaphragmand swing out filter holder can be moved through rack-pinion. This condenser unitincorporateshigh efficiency optical system for optimum utilization of light.✓ LIGHT SOURCE Arc-reflector set for using natural light to study the slide. (Optional)✓ OBJECTIVE Achromatic 10X, 45X and 100X oil immersion.✓ PACKAGING In mould Styrofoam box or wooden box storing cabinet with lock and key(on demand).✓ ALSO INCLUDED Vinyl dust cover, lens cleaning wipes, operating manual.OPTIONAL Battery operated LED pin-type lamp with (ON & OFF) switch Additional Information: Item Code: SS-300 Production Capacity: 1000 Delivery Time: 4-6 Weeks Packaging Details: Wooden Box
