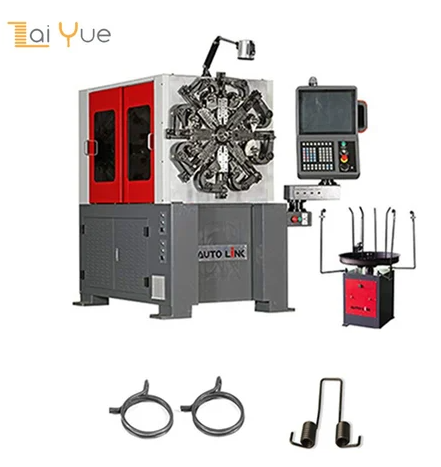

Autolink CNC Wire Forming Machine -WF-538R

Product Details: Minimum Order Quantity 1 Set Wire Material Stainless Steel Max Inlet Wire Diameter 0-3 mm Axis Standard 5-6 Machine Weight 1500kg Wire Feeding Axis 2.7KW Max.Wire Feed Value 9999.99mm Quill Rotary Axis 0.4KW Wire Rotary Axis 2.0KW Dimension 1.3*1.1*1.7 Min.Wire Feed Value 0.01mm Cam Axis 2.7KW Compressor Air Pressure 5-6kg/cm Wire Feed Rollers Groups 3 Sets Probe 4pcs Max.Wire Feed Speed 100m/min Spinner Axis 0.4KW The5 axis cnc wire forming machine comes with a wire rotary. Hence, it shows that the machine can able to attach a number of tools. As usual, the machine’s working remains the same. The machine helps to build the complex shapes of compression, tension, torsion, tower, and flat wire springs..
