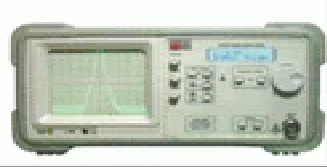

Spectrum Analyser (Without Tracking)
Frequency range -0.15~500MHz
Stability - ±10ppm / year
Aging -± 2ppm each year
Resolution of frequency display -10kHz(5 digit)
Readout accuracy - ±2%* sweepwidth+5*10-3* CF+10kHz
CF adjustment range -0 .15~500MHz
Frequency synthesize -TCXO,DDS
Sweep width range -zero steps and 1-500MHz (1-2-5 steps)
Sweep Width accuracy - ±10%
Resolution Bandwidth -400kHz ±20kHz
Video-Filter Bandwidth -4kHz
Sweep time -20ms
Amplitude Specifications -0.15~500MHz
Range - -100dBm~13dBm
Display: CRT -8*10div
Display calibration -10dB/div,logarithmic
XY Mode
Display -range:80dB(10 dB/div)
Amplitude Frequency Response
400kHz,Signal -17 dBm:<±4 dB
LCD Display -2*16,Center frequency,Sweep frequency width,Reference Level
Accuracy(Input attenuation) -=±2dB/10dB
Reference level range --27 dBm~13 dBm(each 10dB)
Average noise level: --90 dBm(RBW20kHz VBW4kHz)
2nd harmonic suppression - -27 dBm,0 dB attenuation,=-50 dBc
VSWR (Attenuation –(10 dB):typ. 1.5:
10 dB Attenuation, -Zero Step,Resolution Bandwidth
Accuracy -(Reference level)250MHz(CF),Zero step,RBW400kHz:±2 dB
Additional Information:
Item Code: LE6005
