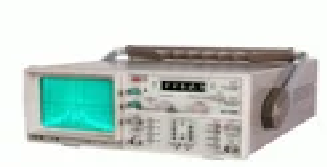

Spectrrum Analyser (With Tracking)
Frequency range: 0.15 ~ 1050MHz
4 half figures (center frequency, 0.1MHz Resolution)
100 ~ +13 dbm amplitude range, 20KHz, 400KHz IF filter bandwidth and 4KHz video
Output range: +0 ~-50dBm (50Ohm)
Tracking generator
Point frequency mode and Sweep mode
GSM, CDMA mobile phone repair
Frequency Measurement Extension
Radiated interference test: With the AZ-530-E electric field monopole probe
Internal Circuit Interference test: With the AZ-530-M magnetic field probe
Internal circuit Checking and repairing Test: With the AZ-530-H high-impedance probe
CATV and communications machine inspection: with the impedance converter
Frequency:
Range: 0.15 ~ 1050MHz
Center frequency display accuracy: plus or minus 2% × spectral width of +5 × 10^-3 × center frequency +100 KHz
Tag accuracy: plus or minus 0.1% bandwidth +100 HKz
Frequency Display Resolution: 100KHz (4 ½-digit LED)
Sweep width: 100KHz / cell ~ 100MHz / 125 block grid and 0Hz / cell (0 scan)
Frequency stability: better than 150KHz / hour
IF Bandwidth (-3dB): 20KHz (plus or minus 50%); 400KHz + (0, -40%), video filter (pass); 4KHz
Scan Rate: 43Hz
accuracy: plus or minus 10%
