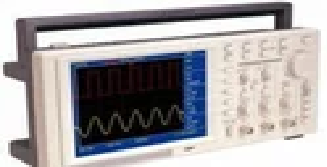

Digital Storage Oscilloscope-60MHZ
7.8" (640 × 480) 256 COLOURS LCD Display,Backlight & Contrast Adjustable
Sampling Rate : 10 S/S ~ 250 MS/S
Record Length : 5 K Sampling Points / Ch.
Auto Setup for quick setting-up and waveform display
Upto 5 Auto-Measurements
Many Waveform storage
Dual Channel with Probe Attenuation Ratio setup
Dual Cursor Measurements : ΔV, ΔT & 1 / ΔT
Standard Sampling / Peak Value Sampling / Average Sampling
Multilingual menu includes English Menu
USB Interface (Optional)
Battery Operation (Optional)
Rise Time Approx: 17.5ns(*5 MAG: 50ns)
Vertical Deflection-5 mV /div. ~ 5 V / div
DC Gain Accuracy-± 5 %
Vertical Resolution-8 bit Simultaneous sampling
Sweep Time-5 S ~ 5 nS / div
Power-AC 100 ~ 240 V (RMS), < 15 W
Environmental-Working Temp.: 0 ºC ~ 40 ºC, R.H. ≤ 90 %
Size & Weight -350 × 157 × 120 (mm), Approx. 1 Kg
Accessories-One Manual, One Mains Cord & Two Probes (1:1/10:1)
Optional-USB Interface & Battery Operation.
Additional Information:
Item Code: CRO-60D
