Karunanand Hydro Pneumatic Controls Private Limited
Established in the year 1996, Karunanand Hydropneumatic Controls Private Limited is one of the notable manufacturers and suppliers of diverse range of industrial baling presses. Our range encompasses of briquetting presses, transfer moulding presses, coir baling presses, deep drawing presses, baling presses, large platen presses, cotton baling presses, rubber moulding press and ginning machines. These are known for trouble free performance, robust construction, energy efficient and durability.
Our sound infrastructure is backed by all the requisite facility that enables us to fabricate industrial baling presses in line with international quality standards. We also provide after sales service to our clients on turkey basis. Our entire production process is efficiently carried out by adroit professionals who are well versed with the latest updates of industries. With our intensive research activities, we are able to offer enhanced range of baling presses to our clients spread across the globe.
Preview
E-3, Anandnagar, MIDC,,Additional M.I.D.C, Kalyan, Thane,
Kalyan - 421506
Kalyan - 421506
Contact Details

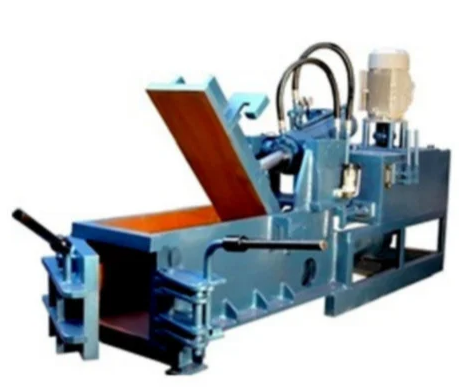

Triple Action Hydraulic Scrap Baling Press
We provide Triple Action Hydraulic Scrap Baling Press, which is installed with high pressure, double, vane type pump. Designed in line with international quality standards, our range finds wide application in steel and aluminum industries. These triple action hydraulic scrap baling presses are renowned for optimum performance, robust construction and long service life. Our range comes in big, medium and small sizes.
Technical Specifications:
Models Big Medium Small
Baling chamber 52"X60"X85" (HXWXL) 25"x30"x60" 20"x20"x50"
(H)x(W)x(L) (H)x(W)x(L)
Bale Size 24"X30"X20"-30" 12"X12"X5 - 8" 10"X10"X8 - 10"
(HXLXW) (HXLXW) (HXLXW)
Weight of Bale (Approx) 175- 400 Kgs. (M.S.) 75-125 Kgs. ( AL) 55-100 Kgs (M.S.) 30- 60 Kgs (AI) 40-65 Kgs (M.S.) 12- 22 Kgs (AI)
Body M.S. Fabricated & Stress Releaved. M.S. Fabricated & Stress Releaved. M.S. Fabricated & Stress Releaved.
PUMP High Pressure, Double Vane Type. High Pressure, Double Vane Type. High Pressure, Double Vane Type.
OIL. Enclo-68 Enclo-68 Enclo-68
Cover Ram TONNAGE 110 TONS 45 tons 45 tons
MAIN RAM TONNAGE 160 TONS 80 tons 65 tons
SIDE RAM TONNAGE 210 TONS 125 Tons 90 Tons
Ejector TONNAGE 12 TONS (Each) 6 TONS (Each) 6 TONS (Each)
2 Nos. 2 Nos. 2 Nos.
Working pressure 225 BAR. 225 BAR. 225 BAR.
Hard liner plates Provided Provided Provided
Shearing blades Provided Provided Provided
Motor starter Provided Provided Provided
POWER 75H.P. 3Phase, 1440 (R.P.M.) 25 H.P. 3Ø, 1440 (R.P.M.) 20 H.P. 30, 1440 (R.P.M.)
Idle cycle time (Approx) 120 - 130 Seconds 90-110 Seconds 90 - 100 Seconds
Kalyan - Maharashtra
