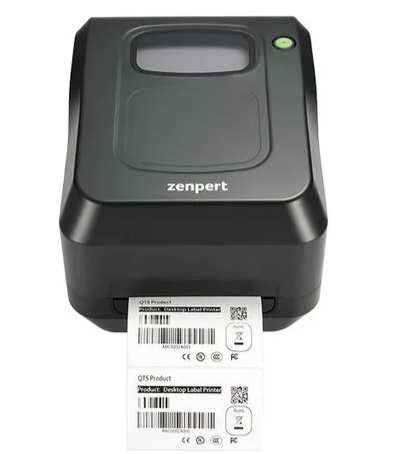

Zenpert 4T520 Barcode Printer

Resolution 203 DPI (8 dots/mm) Max. Print Width 4.25 inch Model Name/Number 4T500 Series Max. Print Length 1000 inches Maximum Print Speed 6 inch/second Brand Zenpert Connectivity USB 2.0 CPU Type 32-bit RISC CPU Power Source Electric PRINTER MODEL 4T520 4T530 Resolution 8 dots/mm (203 DPI) 12 dots/mm (300 DPI) Printing method Thermal Transfer & Direct Thermal Max. print speed 152 mm(6”)/ second 102 mm(4”)/ second Max. print width 108 mm (4.25”) 105.6 mm (4.16”) Max. print length 25,400 mm (1000“) 11,430 mm (450“) Enclosure PC and ABS plastic Physical dimension 211 mm(W) x 164 mm(H) x 279 mm(D) 8.31”(W) x 6.46”(H) x 10.98”(D) Weight 2.0 kg (4.41 lbs.) Label roll capacity 127 mm (5”)OD Ribbon 300 m long, max. OD 67 mm, 1” core (ink coated outside) 110 m long, max. OD 40 mm, 0.5” core (ink coated outside) Ribbon width 40 mm ~ 110 mm (1.6” ~ 4.3”) Processor 32-bit RISC CPU Memory • 16 MB Flash memory • 64 MB SDRAM Interface • USB 2.0 Power External universal switching power supply • Input???AC 100-240V, 2.0A, 50-60Hz • Output???DC 24V, 2.0A, 48W Operation switch???button???LED • 1 Power switch • 1 operation button (pause/feed) • 1 LED (3 colors???green???orange & red) Sensors • Transmissive gap sensor • Black mark reflective sensor • Ribbon end sensor • Head open sensor Internal fonts • 8 alpha-numeric bitmap fonts • Windows font can be downloaded by software
