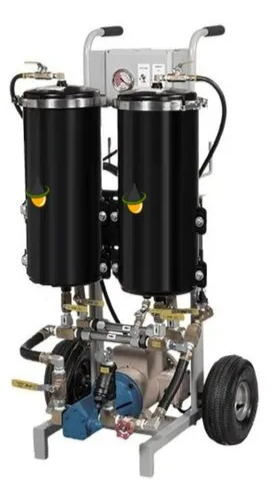

Automatic Hydraulic Oil Cleaning System

Brand Karroter Technique Model Name/Number HOF Dual Series Weight 80 Kg Packaging Type Wooden Box Phase Single Phase / 3 Phase Motor Power 0.5 HP Oil Sample Valve Yes Filter Collapse Pressure 6 bar Pressurized Delivery Yes- Up to 10 mtr Frequency 50 /60 Hz Operation Process Multiple Pass Water Holding Capacity 4.7 Lit (only for 15 B Filter Element) Operating Pressure 0.5 to 5 bar Voltage 110 / 220 /440 V AC Flowrate of Unit 15- 20 LPM Overall Dimensions 350 mm (L) X 500 mm (W) X 1000 mm (H) ISO Class 19 / 17 / 14 What happens to hydraulic oil? Contamination is a major cause of oil breakdown and hydraulic press failure. Particulate contamination and moisture provide the environment for hydraulic ream seal and o-ring degradation, leading to leaks and unscheduled downtime. Pump, actuator, valve seals, and o-rings are vulnerable to dirt and moisture contamination that also upset a preventive maintenance effort. Are you facing following problems with your equipements? High new oil cost Contamination of "new" oil Moisture in your oil High disposal cost Leaking Seals Cavitation Abrasion Diminished performance HOF Dual series hydraulic oil filtration skid provides a convenient portable mode of off-line filtration, flushing and fluid transfer. Use it with your in-plant machinery and hydraulic equipment to achieve and maintain proper ISO cleanliness levels. Our automatic version comes with differential pressure switch, differential pressure gauge, digital hour meter and flow totalliser, cycle timer etc.
