Jignesh Machine Tools
Pioneers in the industry, we offer Hydraulic Surface Grinder, Vertical Milling Machine, Surface Grinding, DRO MILLING MACHINE and Milling Machine from India. Offering you a complete choice of products which include Hwacheon Centre Lathe, Banka Vertical Turret Milling Machine V-4, All Gear Lathe Machine, Leath Machine Spare Parts, Turret Lathe Machine and LATHE MACHINE. Pioneers in the industry, we offer Repair and Maintenance of All type of Convection machine from India.
Preview
00, Baroda Bone Compound Pratap Nagar Road,,Opp.Zenith High School, Near Datt Nagar,,
Vadodara - 390004
Vadodara - 390004
Contact Details

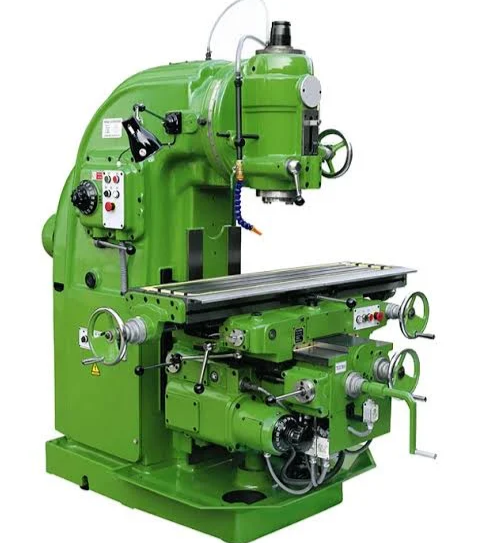

Vertical Milling Machine
Specification Model No.2 Model No.3
Table Size 280x1270mm 310x1450mm
Table Travel Longitudinal 660mm 735mm
Table Feeds 9/repid 9/repid
Tee Slot 3/16mm 3/16mm
Cross Travel 280mm 310mm
Knee Travel 400mm 500mm
Cutter Arbor 25.4mm# 25.4mm#
Spindle Taper ISO 40# ISO 40#
Spindle Speeds RPM 9 speeds 40-1050 9 speeds 40-1050
Spindle Motor 5H.P. 5H.P.
Feed Motor 2H.P. 2H.P.
Coolent Pump 0.10 H.P. 0.10 H.P.
Vadodara - Gujarat
