Surface Grinding

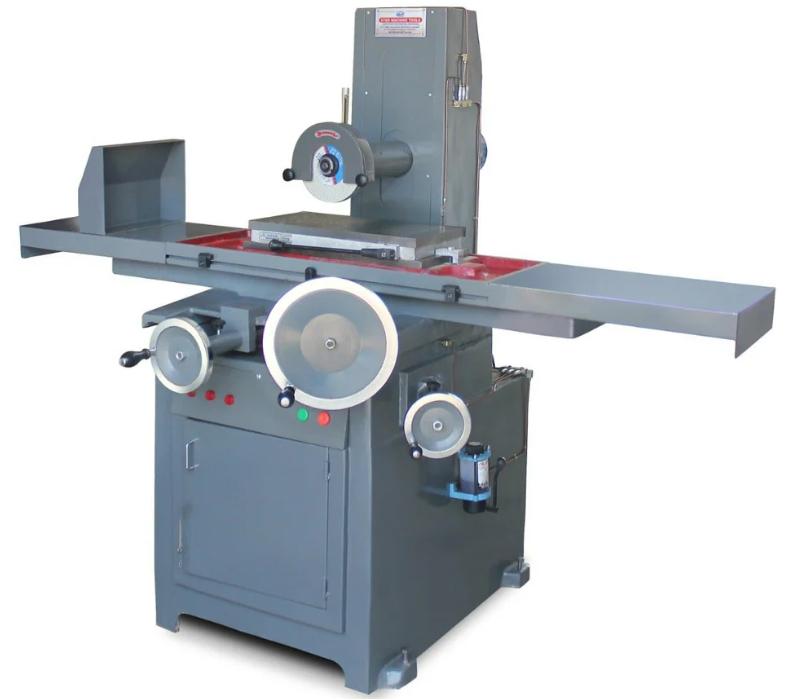

A Manual Surface Grinder is a precision machine tool used for grinding flat surfaces on metal and other materials. It is manually operated, allowing the operator to control the grinding process by adjusting the table movement, feed rate, and depth of cut. The machine consists of a rotating grinding wheel mounted on a spindle, which removes material from the workpiece to achieve high-precision finishes. The workpiece is typically held in place by a magnetic chuck or other clamping methods. The operator moves the table back and forth, while the grinding wheel gradually removes material, ensuring a smooth and accurate surface finish. KEY COMPONENTS GRINDING WHEEL – Used for cutting and finishing surfaces. MAGNETIC CHUCK – Holds ferromagnetic materials securely in place. HANDWHEEL CONTROL – Adjust the movement of the table and grinding wheel. WORK TABLE – Supports and moves the workpiece during grinding. WHEEL GUARD – Ensures safety by covering the grinding wheel. COOLANT SYSTEM (Optional) – Helps reduce heat and remove grinding debris. APPLICATIONS OF USE Precision machining of flat surfaces. Tool and die-making. Grinding hardened steel, cast iron, and other metals. Refinishing worn-out machine parts. Manual surface grinders are commonly used in workshops, tool rooms, and small manufacturing units, where high-precision surface grinding is required at an affordable cost.
