Jignesh Machine Tools
Pioneers in the industry, we offer Hydraulic Surface Grinder, Vertical Milling Machine, Surface Grinding, DRO MILLING MACHINE and Milling Machine from India. Offering you a complete choice of products which include Hwacheon Centre Lathe, Banka Vertical Turret Milling Machine V-4, All Gear Lathe Machine, Leath Machine Spare Parts, Turret Lathe Machine and LATHE MACHINE. Pioneers in the industry, we offer Repair and Maintenance of All type of Convection machine from India.
Preview
00, Baroda Bone Compound Pratap Nagar Road,,Opp.Zenith High School, Near Datt Nagar,,
Vadodara - 390004
Vadodara - 390004
Contact Details

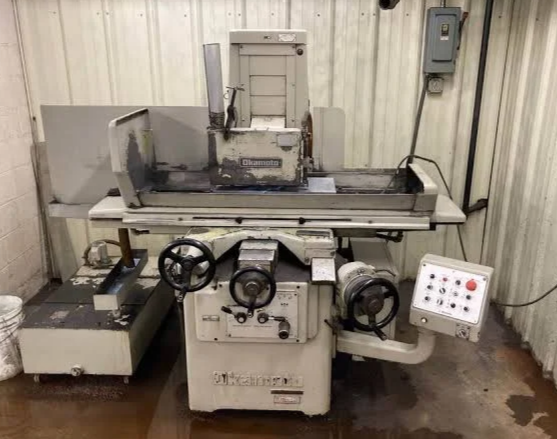

Hydraulic Surface Grinder
Table size 150x450mm. (6"x18") 200x500mm (8" 20") 200x500mm (10" x 24") 300 x 600 mm (12" x 24")
Max. grinding length Longitudinal 475mm (19") 525mm (21") 625mm (25') 625mm (25")
Max. grinding Width Crosswise 160m (6 1/4) 212mm (81/2") 212mm (101/2") 312mm (12 1/2")
Max. Distance from table surface to spindle centerline 250mm (10") 400mm (16") 450 mm (18")
Standard Magnetic Chuck Size 160x350mm (6"x14")
Longitidinal Movement of table Hand wheel per rev. 100mm (4")
Table speed elect. autofeed
Max travel hydraulic 475mm (19") 525 mm (21") 625mm (25") 625mm (31")
Table speed infinitely variable hydraulc 50HZ, 5-25 m/min, 60HZ, 5-25 m/min
Cross transverse travel Max. auto transverse travel 160m (61/4") 212mm (8 1/4) 262mm (10 1/2") 312mm (12 1/2")
Handwheel per revolution 5mm (0.2")
Handwheel per graduation 0.05mm (0.0012 1/2")
Auto transverse increment 1-10mm (0.04"-0.4")
Wheelhead Vertical Handwheel per revolution 1mm (0.05")
Handwhee; per gradulution 0.01
