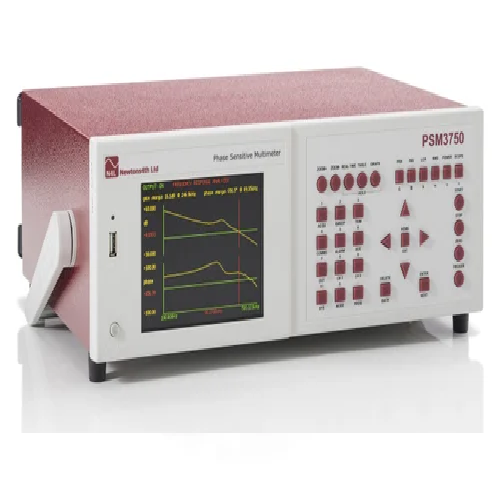

Newtons PSM3750 Frequency Response Analyzer

The Newtons PSM3750 Frequency Response Analyzer (FRA) is a high-performance instrument designed for precision measurement of electrical and electro-mechanical systems. It is widely used in power electronics, control systems, and R&D labs for testing and analyzing the frequency response of components and systems. Key Features of the Newtons PSM3750: Frequency Range: The PSM3750 offers a broad frequency range, typically from 10 µHz to 50 MHz, making it suitable for a wide range of applications in low and high-frequency testing. High Accuracy: The device provides accurate measurements with high signal resolution and phase accuracy, making it ideal for detailed characterization of systems. Impedance Measurement: It can measure the impedance (Z), admittance (Y), gain, and phase response of electrical systems, making it highly versatile for testing components such as transformers, capacitors, inductors, and power supplies. Bode Plot Generation: The PSM3750 can automatically generate Bode plots, which are crucial in control system design and stability analysis, showing how gain and phase vary with frequency. Vector Network Analysis (VNA): It features VNA capabilities, which allow for precise network analysis and impedance measurement over a wide frequency range. Multiple Measurement Functions: The PSM3750 performs a variety of functions, including frequency response, harmonic analysis, power measurement, and impedance spectroscopy.
