Hydrostatic Test Pump
Max Flow Rate 130 LPH
Usage/Application Hydro Test
Power 1 HP to 10 HP
Driven Type Belt Pulley Driven
Power Source AC Powered
Motor Horsepower 3 HP
Pressure >100 Bar
Model Name/Number HFF Series
Material Working Parts SS304
Motor Speed 300
Motor Power 3 HP
Mounting Option Base Plate Mounting
Capacity 130 LPH Approx
Discharge Size 1/2"
Plunger Size 20 mm
Features Electric Motor Driven
Installation/After Sales Service Provided
Pump Drive V-Belt
Suction Size 1/2"
Color Tata Blue Paint
Brand Hi-Test
Reservoir 80 Ltrs MS Tank
Flow 130 LPH
Motor Size 3 HP/1440 RPM
Technique Reciprocating Plunger Pump
Design Single Plunger Pump
Product Type Plunger Pump
Displacement 20 mm
Motor Phase 3 Phase
Packaging Type Wooden Case Packing
Fluid Type Water
Maximum Flow 130 LPH
Operating Pressure 200 Kg/cm2
Rotation Bi-Directional

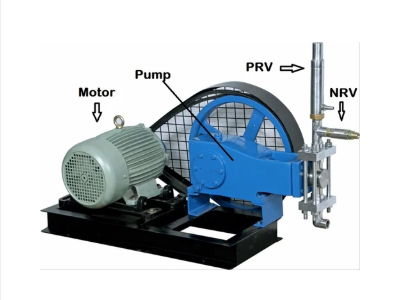

Hi-Test Make Hydrostatic Test Pump
Working Pressure Starting from 50 Kg/cm2 to 700 kg/cm2 Working Pressure
Electric Motor Driven Pump having discharge flow of around 1.5 LPM to 2 LPM.
Motor HP Requirement from 1 HP/1440 to 10 HP/960 RPM
