DCM Raw Cable Test System 8 Port AEM MMVNA-200
Type Of Testing Machines Multi Mode Vector Network Analyzer
Display Type Digital
Display Digital
Machine Type R F Analyzer
Brand AEM
Voltage 12 Volt
Weight 1.0 Kg
Model Name/Number MMVNA-200
Frequency Range 0.1 - 3,000 MHZ
Size 17.5cm (Depth) x 16.5cm (Width) x 5.5cm (Height)
Mixed Mode Multi-Port Vector Network Analyzer
The MMVNA performs mixed-mode S-parameter measurements in single-ended or dual-ended configuration. MMVNA can be used with AEM’s VNA Manager Pro software providing wide range of configurations of testing environment and measurement result display. MMVNA can also be easily integrated with customers software via TCP/IP socket interface, or by using our commands interface. This makes MMVNA an ideal tool for manufacturing testing and lab testing of RF components.

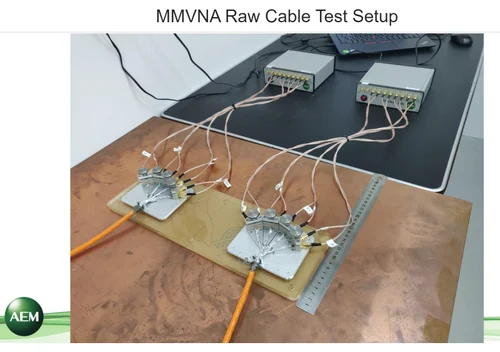

The MMVNA – 200 is a comprehensive, compact, customizable, and cost-effective tool for manufacturing or lab testing. With numerous test fixtures for testing components such as raw cable, connectors, patch-cords, or cable harnesses MMVNA significantly reduces the effort in setting up test environment. Its powerful VNA Manager Pro software provides a wide range of S-parameter selections, unlimited plots, and traceable test reports. You can even configure secondary parameters such as ACR-F, capacitance, inductance, step or impulse response time domain plots, and more!
