Quick Release Coupling - connection with residual pressure

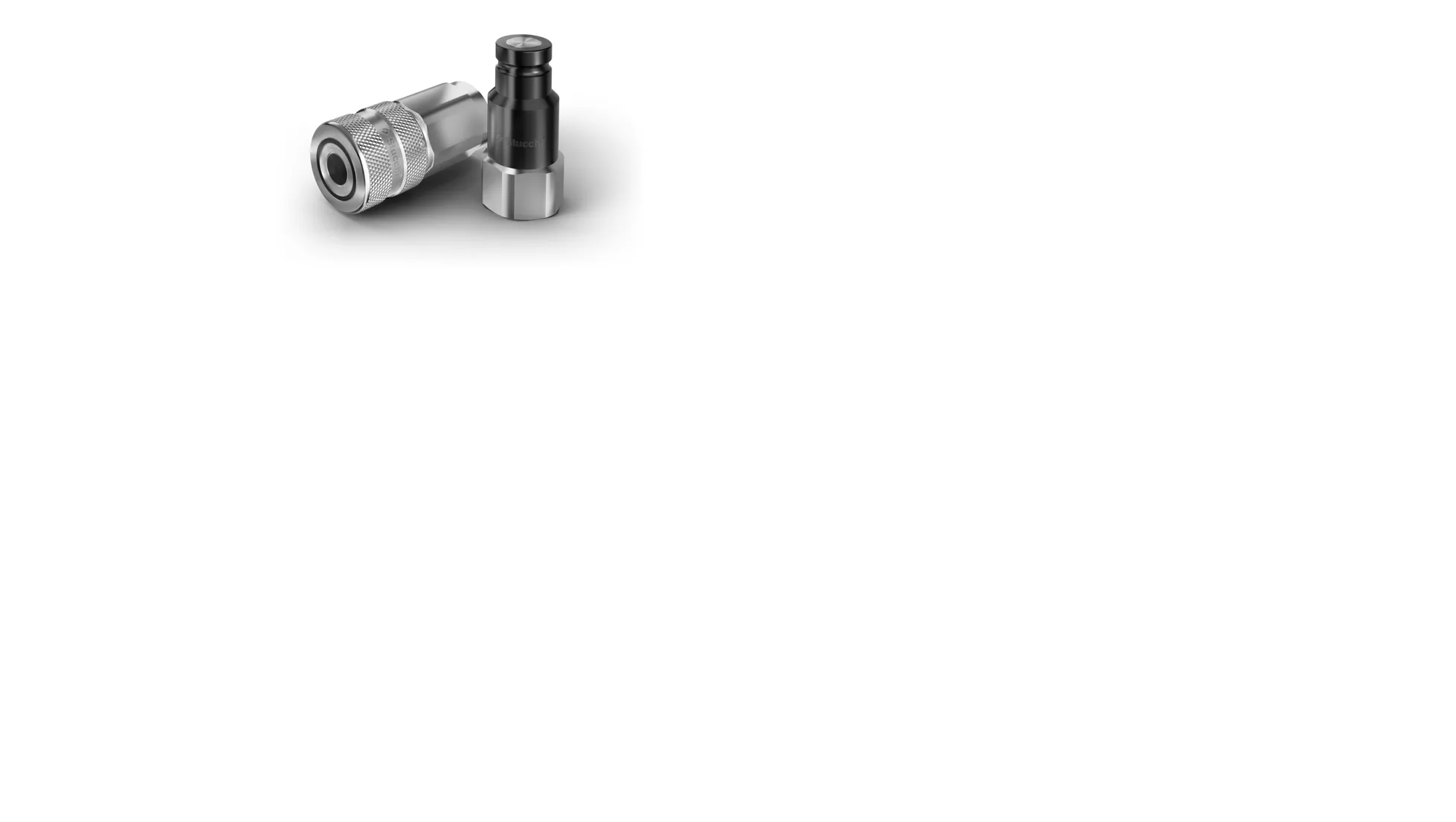

Usage/Application Hydraulic Pipe Brand Stucchi Material Mild Steel Size 1/8" - 3/8" Product Type A HP (High Pressure) Temperature -20C to 100C Max. Operating Pressure 720 Bar Seals NBR(Nitrile) Thread Type BSP, NPT Application High Pressure, Hydraulic Equipment Fluid Medium Hydraulic Oil Flow Range Upto 46 lpm “A-HP” is the flat face coupling series designed for high pressure hydraulic applications up to 700 bar / 10,152 psi. The couplings are manufactured with high resistance carbon steel. The flat face design eliminates leakage during connecting and disconnecting. For safety, the couplings are designed not to interchange with lower pressure couplings and the automatic safety lock prevents accidental disconnection. “A-HP” series is used in applications where high operating pressure is necessary with maximum safety features.
