Foreman Machine Tools Private Limited
Established in year 1979, we, Foreman Machine Tools Private Limited are engaged in manufacturing and exporting FMT C Type Power Press Machine, FMT H Type Power Press Machine, FMT Inclinable Power Press Machine, FMT Pneumatic Power Press, FMT Under Crank Shearing Machine and many more. Our range of products is appreciated for their durability, efficiency and long performance. We being a client- centric organization, manufacture our products keeping in mind the needs and the demands of the clients. These products are manufactured using high quality raw material. Advanced machinery and modern technologies.
We have an efficient team working with us, which stand as a pillar of the organization. They are responsible for the quality testing of the products. Our organization has a spacious infrastructure installed with all the required equipments and mechanical tools. The products manufactured by us stored safely in our warehousing unit. Our clients can avail these products at cost efficient prices from us.
Our company is guided by our mentor, “Mr. Harendra Sinh Parmar”, who possess more than 3 decades of experience in this line of work. His dedication, knowledge and support has helped our firm to achieve the desired goals.
Preview
Ground Floor, Survey No. 46/1, Plot No.44,Vrindavan Gaushala 50ft Road Rajkot - 360004, Gujarat, India,
Rajkot - 360004
Rajkot - 360004
Contact Details

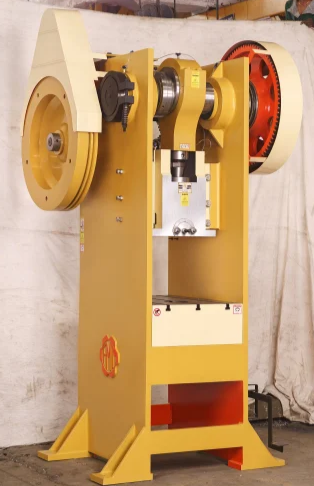

FMT 150 Ton H Type Power Press Machine
Model Name/Number FMH 150
Power Source Mechanical
Type H Type
Capacity 150 Ton
Weight 6600 Kg
Motor Power 15 HP
Brand FMT
Adjustment of Ram 25 mm
Flywheel Weight 450 kg
Hole in Bed 200 mm
Punch Hole in Ram 80 mm
Strokes Per Minute 40 mm
Floor To Top of Bed 1000 mm
Adjustment of Stroke 127 mm
Allover Size LR x FB x H 2050 x 2000 x 3300 mm
Bed Size (Length x Width) 660 x 710 mm
Bed Thickness 127 mm
Crankshaft Diameter 196 mm
Distance Between Bed to Ram 457 mm
FMT Brand Heavy Duty mechanical Power Presses are coming in "C" frame versions from 30 tons to 500 tons capacity in most economical type of construction with several std./optional features such as manual/auto lubrication systems, knockouts electronics safety, Single/Double or Un-geared versions as also Pneumatic feeders/straightness & die-coilers for automatic Purpose.
FRAME:The frame is fabricated from solid steel plate with heavy cross ribbing, the structure is designed for perfectly balanced distribution of stress over the cross section eliminating deflection& vibration, in result increased tool & machine life.
CLUTH:The Clutch is made of special alloy steel, The pin / rolling key is manufactured from W.P.S. / EN24 material & with proper heat treatment to ensure trouble free long life & give continues stroke for mass production.
CRANK SHAFT:The Crank shaft is made of special alloy steel & precisely machining it to grind finish & fitted in Graded Gun-Metal Bushes for smooth working, longer life & accuracy.
ADJUSTABLE STROKE:The unique feature of adjustable stroke enables the press to perform all kinds of operations by employing short stroke for blanking and forming operation.
FLYWHEEL:Properly sized flywheel is made of high grade cast iron, for storing and releasing adequate energy for the pressing operation, and properly balanced for smooth running.
