Flowage Mechatronics System
We ‘FlowAge Mechatronics System’ are pleased to introduce ourselves as the marketing organization for Industrial and Automation Products. And we are authorized channel partner of LUBI INDUSTRIES LLP, And also ordially associated with other manufactures or vendors who are already known in the market for providing good quality products such as,Kirloskar, Crompton, Sant, Rotodel , Milton Roy etc.
Our endeavor is to provide a complete line of pumping solutions ranging from Water/Utility Pumps, Process Pumps, Chemical Handling (Non-Metallic) Pumps, Sewage Pumps, Drainage Pumps, Grinder Pumps, Fire Fighting Pumps, HVAC, Motorized Valve/Actuators, Engines, Electric Motors, Control Panels , cPVC, uPVC, SWR, PPRC-FR Composite Pipes and Other Automation Products.
PUMPS - LUBI, Kiroskar
MOTORS - LUBI, Crompton Greaves, BBL, Kirloskar, Siemens
VALVES - LUBI, Sant, Castle, Belimo,
FLOW METER - Kranti, Kent, Belanto,
PIPES - FUSION
ENGINES - Ashok Leyland, Mahindra
CONTROL PANELS - LUBI, L T
SWITCH GEAR AND RELAYS - L T, Minilec
DOSING PUMPS - Milton Roy
GEAR PUMP - ROTODEL
Preview
SS2/815D,,Sector D1 Road, LDA Colony, Kanpur Road,
Lucknow - 226012
Lucknow - 226012
Contact Details

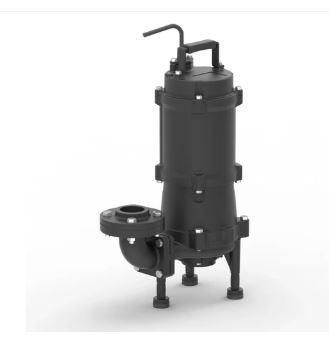

Lubi Submersible Grinder Cutter Pump
Motor Horsepower 6 HP
Motor Phase Single Phase
Brand Lubi
Model Name/Number LGP Series
Max Flow Rate 19 m3/h
Frequency Hz 50 Hz
Voltage 320 V
LGP Series
Features
The pump volute shall be of cast Iron of grade FG260 as per IS210/ISO 186 standard with vertical discharge port, grinder type vortex impeller with material of construction cast iron, suitable for pumping liquid up to 50 deg. C.
The pumps shall be supplied with in built radial cutter and cutter ring made of corrosion resistant material AISI 440 with hardness of 55-60 Rc.
The Pump shall be supplied with double mechanical shaft seal with material of construction of SiC /SiC/Viton/S.S 316 at the pump end.
The pump shall be close coupled with dry submersible motor, having class F insulation, IP 68 protection, 2900 rpm, epoxy sealed cable entry, with S1 duty for fully submerged and S3 duty for partially submerged application.
All cast iron parts shall be CED (cathode electrode deposition) coated for corrosion resistance with uniform coating and controlled deposition thickness of 20-30 microns.
Lucknow - Uttar Pradesh
