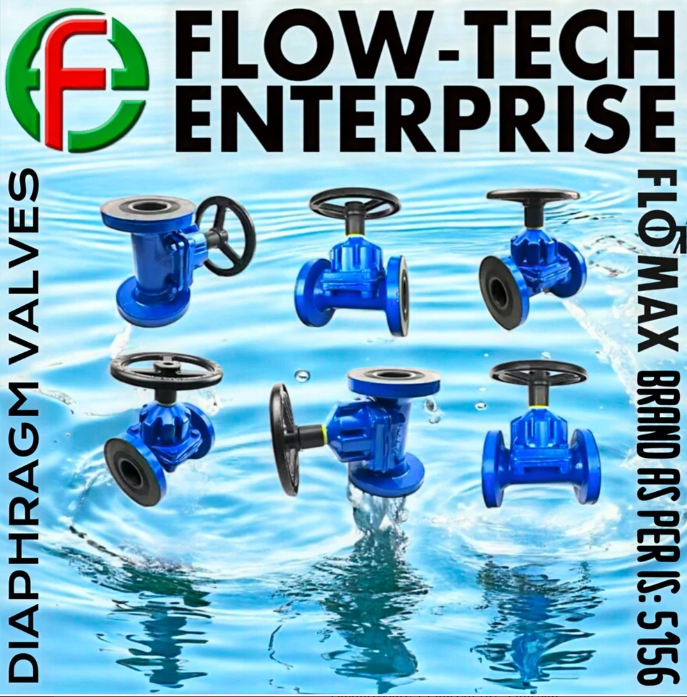

Cast Iron Rubber Lined Diaphragm Valve
Product Details:
Valve Size 3 inch
Material Cast Iron
Maximum Pressure 10 Bar
Maximum Temperature Ambient
End Connection Type Flanged Ends BS 10 Table - D/E
Automation Grade Manually Operated
End Connection Flanged Ends
Media Type Alkali&Acid
Application Alkali and Acid line
Operate Hand Wheel Operated
Packaging Type Box
Pressure 10 Bar
Surface Finishing Epoxy painted
Temperature Ambient
Type WIER type
Usage/Application Alkali and Acid
Cast Iron Higher Grade
Paint Coated Epoxy
Country of Origin Made in India
The flanges of the valve shall be faced and drilled as per IS: 1538/IS:6392 or (party's requirements)
The valve as per BS : 5156.
Temperature range : 65o to 200oC
Max.pressure 14 kg/Cm (g) -200Psig.
Materials of diaphragm natural rubber and body cast iron
Mechanism is isolated from fluid.
Hydrostatic test
Body test : 1.5 time nominal pressure rating
Seat test : 1 time nominal pressure rating
