3D printing, also known as rapid prototyping services is a process of making a three-dimensional solid object of virtually any shape from a digital model. The digital model is printed by an additive process where successive materials are laid down in different shapes layer by layer on the 3D printer’s head, and a command is given it using CAD software to print. 3D printing is the fastest, convenient, and economical method for producing a physical model from a digital file. It is used by mechanical, architectural, electrical, educational, aviation, healthcare, and automotive industries for rapid prototyping products for testing and enhancing designs.
Preview
Padmavati Plaza, Store No 119, KPHB Main Road,,Bedsides Kalamandir, Moosapet,,
Hyderabad - 5000018
Hyderabad - 5000018
Contact Details

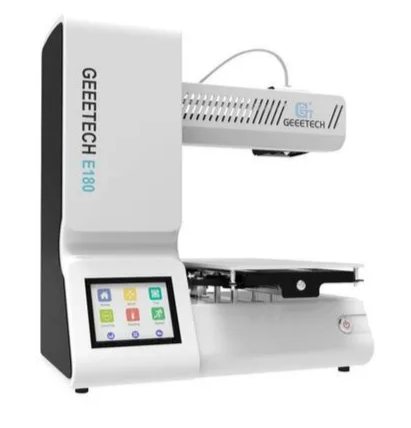

Geeetech E180 Mini 3D Printer
Model Name/Number E180 Mini
Brand Geeetech
Connectivity Wi-Fi, USB, TF card
Filament Diameter 1.75 mm
Operating System Windows
Printing Precision 0.05mm
Temperature 230 DegreeC
Nozzle Diameter 0.4mm
Machine net weight 4.5kg
File format .stl, G-code
Build volume 130x130x130mm
Machine dimension 284x156x320 mm
Shipping box dimension 374x267x386mm
Build Platform Aluminum alloy plate
Stepper Motors 1.8 Degree step angle with 1/16 micro-stepping
XYZ Rods Wear-resistant, stainless steel and lead screw
Display screen 3.2 inches Full color touch screen
Power supply DC 12V/6A
Chassis Metal plate + injection molding
Filament supported PLA
Print Speed 80-110mm/s recommended
Print technology FDM
Control software EasyPrint 3D
Machine gross weight 6kg
