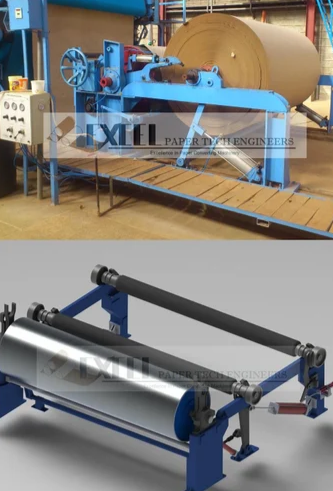

Pope Reel Mill Machinery

Automation Grade Automatic Capacity (ton/day) 0-10 , 10-20, >40, 30-40, 20-30 Output Paper Width 0-500 mm, >2000 mm, 500-1000 mm, 1000-1500 mm, 1500-2000 mm Speed >200 meters/min, 100-150 meters/min, 0-50 meters/min, 150-200 meters/min, 50-100 meters/min We provide our customers an excellent quality range of Pop Reel that is of the highest quality. These pop reels are based on PLC controls and are easy to use and control. The range of pop reel (online winder) is made using the latest technology and has constant winding nip pressure throughout the pneumatic cylinders. These pop reels are available up to 1200 meter/minute mill speed and are designed for easy attachment of automatic empty spool loading system.Features:Primary arm transfers the loaded spool to the secondary arm automatically & manually through the pneumatic cylinderBoth side of the Primary arms rotate easily through the tie rod (Connecting rod)Two harden rollers are attached to the secondary arm to keep the pressure on the spool while windingthe secondary arm will desengage automatically and transfer the spool which if full with winding paper Specifications:Excellent roll build up with large diameter of up to 2500mmMediaum speed capability up to 600 MPM (This is accordance with the present day medium sized paper mill demands)Large deckle width above 4.5 mtrOptional over head empty spool storage structureEasy to maintain, and easy operator controlsImproved paper windingBump Less transfer controlsTight & uniform Winding
