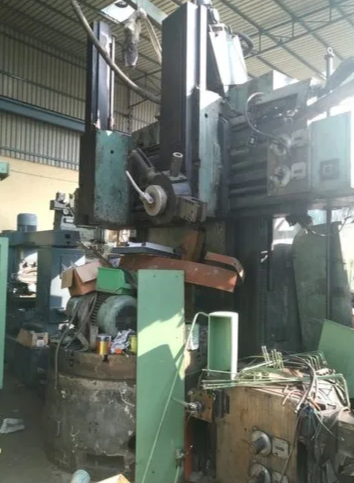

Vertical Turning Lathes
Model PVTL-600 PVTL-1000 PVTL-1500 PVTL-2000 PVTL-2500 PVTL-3000 PVTL-4000
Size of Machine 600 mm 1000mm 1500mm 2000 mm 2500 mm 3000 4000 mm
Diameter of job table 500 900 1300 1800 2300 2800 3800
3Max. Diameter Admit 800 1050 1600 2200 2750 3250 4250
Max. Height under Cross Rail 400 600 1200 1500 1700 1800 2000
900 (Optional)
Verticial travel of turret 300 400 500 700 750 750 1000
Table speeds (Nine) low range 32-60-120 3 To 120 RPM 3 To 120 RPM 0.75 To 30 RPM
1.5 TO 100 RPM
1.5 TO 100 RPM 1.5 TO 100 RPM
High Range 65-133-240 - - - -
-
-
Main Drive Motor 2.2 kw 2 speed 3.7 kw 5.5 kw 11 kw 12 kw 15 kw 17.5 kw
700/1444 RPM 1440 RPM 1440 RPM 1440 RPM 1440 RPM 1440 RPM 1440 RPM
Rapid Drive Motor 1.1 kw 1440 RPM 1.5 KW 1400 RPM 1.5 KW 1400 RPM 3.7 KW 1400 RPM 5 KW 1400 RPM 7.5 KW 1400 RPM 10 KW 1400 RPM
Cross Slide elevating motor 1.5 kw 1440 RPM 1.1 kw 1440 RPM 2.2 KW 0.005 RPM -
- - -
Three feed rate are avaliable 0.102 Per/min 0.00.5/01/.015 0.025 to 1MM To 40 Thou
for each table speed 0.227 Per / min - - - - - -
0.425 Per/min - - - - - -
