DS Machinery Makers
Established in the year 1958, we “DS Machinery Maker” are a notable and prominent Sole Proprietorship firm that is engaged in manufacturing and exporting a wide range of Lathe Machine, Spinning Lathe Attachment, Milling Machine, Grinding Machine, Planer Machine, etc. We are exporting our products in Pakistan , Sri Lanka, Iran, Bangladesh , Egypt, South Africa and Afghanistan countries. Located in Batala (Punjab, India), we are supported by a well functional infrastructural unit that assists us in the manufacturing of a wide range of products as per the set industry norms. Under the headship of "Mr. Jagroop Singh" (Manager), we have gained a remarkable and strong position in the market.
Playing our stroke of excellence time after time, we are deeply rooted in our consistent research & development program and our each product reflects world-class quality & reliability. Furnished with state- of- the- art production & storage unit, we are equipped with sophisticated machines, latest testing equipment to supply tailor made and unadulterated products at market leading prices. we at rapid flow offer the guarantee of no side effect to our clients and ensure that the composition of our products matches their expectations.
Preview
Bye Pass Near RLY,G.T.road Batala, Focal Point, Batala,
Batala - 143505
Batala - 143505
Contact Details

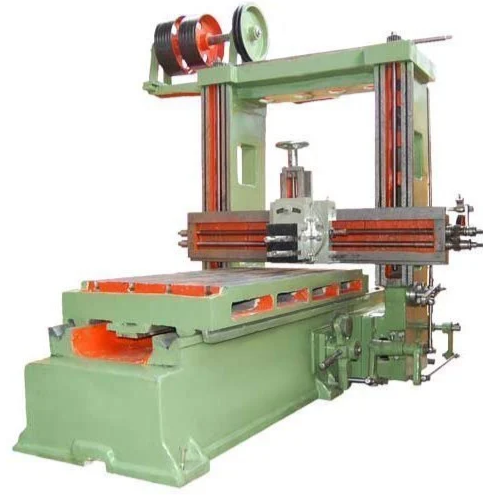

Industrial Planer Machine
Automation Grade Fully-automatic
Usage/Application Industrial
Certification CE Certified
Weight 1000-2000 kg
Driven Type Electric
Voltage 440 V
Brand DSMM
Rated Power 5-7 kW
Country of Origin Made in India
Technical Specification
Sizes Ft. mm 3' 4' 1219 6' 1828 8' 2438 10' 3048 12' 3657 14' 4267 16' 4876
Lengthof bed Ft 5' 6 1/4' 9 1/4' 12 1/4' 15 1/4' 18 1/4' 21 1/4' 24 1/4'
"V's. mm 1905 2819 3733 4668 5562 6477 7391
Leangth of table Ft 3' 4 1/2' 6 1/2' 8 1/2' 10 1/2' 12 1/2' 14 1/2' 16 1/2'
mm 1371 1981 2590 3200 3810 4419 5029
Width of table Inches 21" 24" 27" 31" 33" 36" 36" 36"
mm 609 685 787 838 914 914 914
Stroke of table Ft. 3' 4' 6' 8' 10' 12' 14' 16'
mm 1219 1829 2438 3048 3657 4267 4876
Planning width Inches 30" 30" 36" 48" 54" 60" 60" 60"
mm 762 914 1219 1371 1524 1524 1524
Height under Inches 30" 30" 36" 48" 54" 60" 60" 60"
Cross Rails mm 762 914 1219 1371 1524 1524 1524
Cutting Speed Inches 410" 410" 410" 410" 410" 410" 410" 410"
P.M.
Return Speed Inches 610" 610" 610" 610" 610" 610" 610" 610"
P.M.
Method of Driving ELECTRICAL BELT DRIVEN WITH RACK & PINION
No.of Tools posts 1 1 1 2 2 2 2 2
H.P.Required 2 2 3 5 7 1/2 7 1/2 7 1/2 10
Batala - Punjab
