Devam Enterprise
Established in the year 2012 at Ahmedabad (Gujarat, India), we “Devam Enterprise” are the recognized organizations engaged in manufacturing and trading of Lathe Machine, Radial Drilling Machine, Power Press Machine, etc. Our company is Sole Proprietorship (Individual) based. We have achieved the reputed position in the industry under the supervision of Owner,” Paurav Shah”.
Preview
A2, Alok Apartment, Jodhpur Gam,Near Rajshree Tower, Jodhpur Village,,
Ahmedabad - 380015
Ahmedabad - 380015
Contact Details

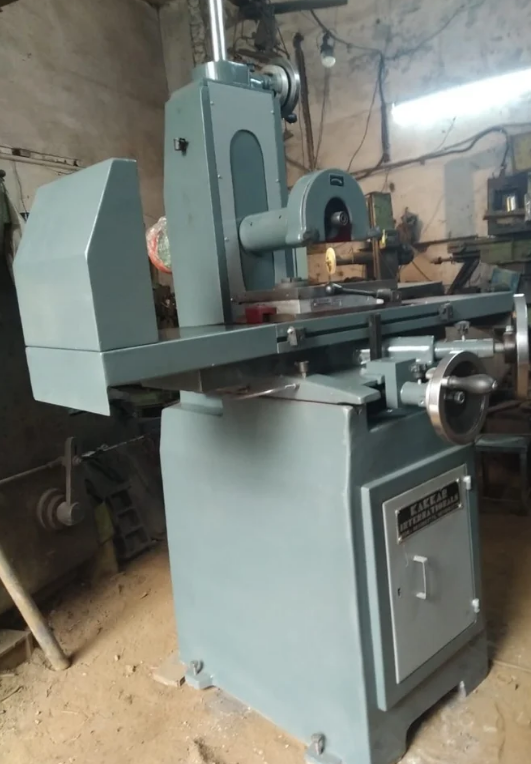

Surface Grinding Machine
Max. Table Size mm 300 x 750 300 x 1000 400 x 800 400 x 1000 300 x 1500
Max. Longitudinal Travel mm 850 1075 875 1100 1575
Max. Cross Transverse mm 350 350 450 450 450
Max. Spindle Center Height above Table mm 550
SPEED AND FEEDS
Max. Table Speeds m/min. 18
Power Cross Transverse mm/min 3000
Auto Cross Feed at each Table
Reversal (Infinitely variable) mm Programmable
Least Count of Vertical feed head wheel mm 0.001
Control(2 AXIS) optional HUST/Siemens
Programming Standard ‘G’ code and ‘M’ code, With NC File
GRINDING HEAD
Size of Grinding Wheel mm 350 x 50 x 127
Power of Spindle Motor HP 5 7.5
Speed of Grinding Spindle RPM 1400
HYDRAULIC SYSTEM
Working Pressure Kg/Cm 20
Motor HP 3
Tank Capacity Ltrs 125
VERTICAL SLIDE (X-AXIS)
Rapid traverse mm/min 3000
Min. programmable increment mm 0.001
Automatic intermittent feed each table stroke Programmable
Ahmedabad - Gujarat
