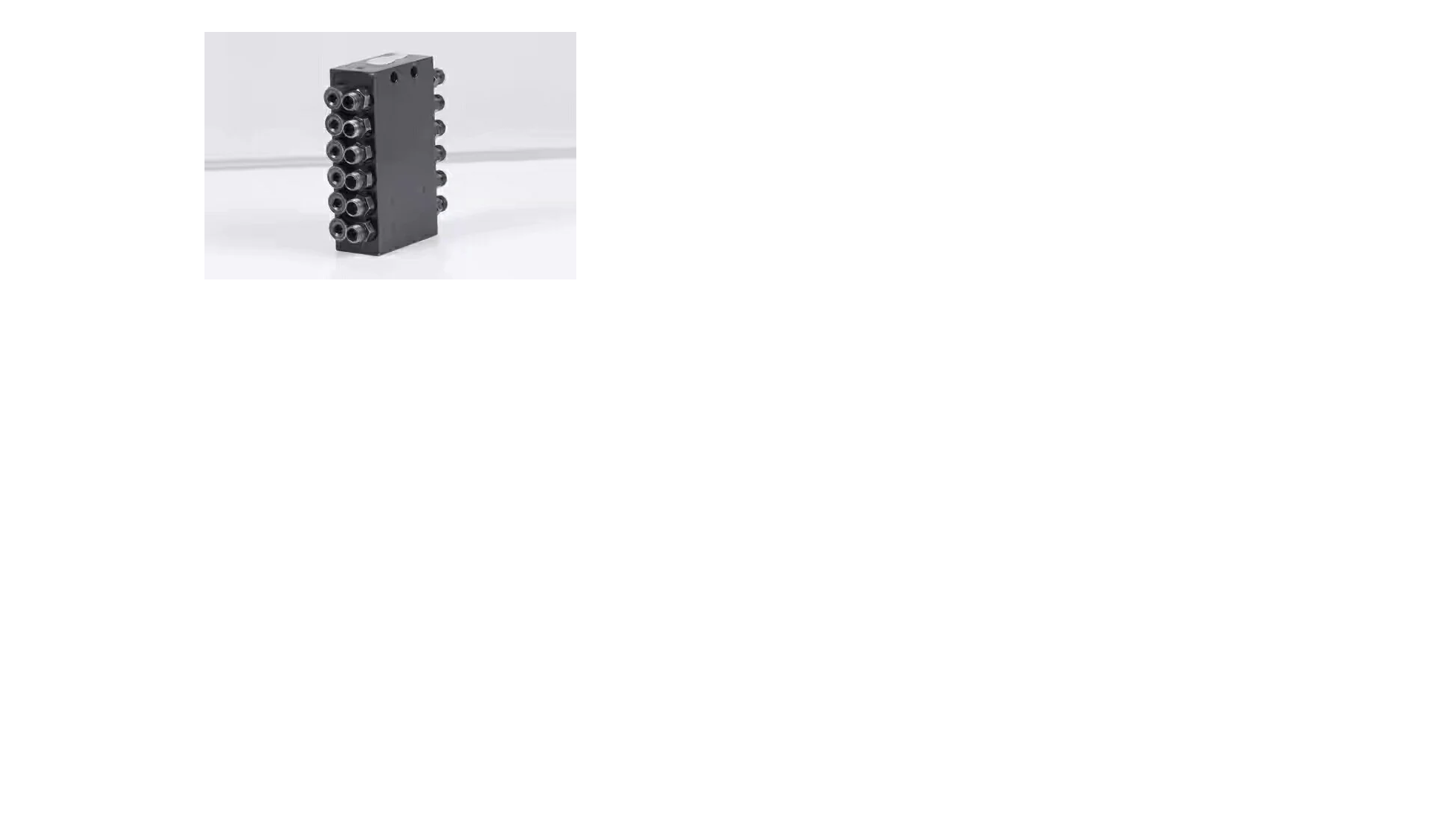

Progressive Distributor Block

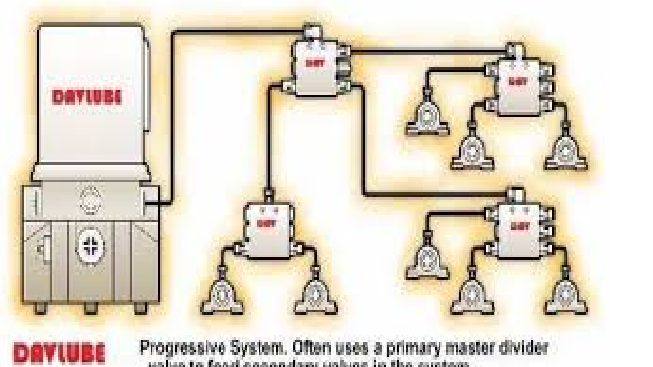

A single line progressive system uses lubricant flow to cycle individual metering valves and valve assemblies. The valves consist of dispensing pistons moving back and forth in a specific bore. Each piston depends on flow from the previous piston to shift and displace lubricant. If one piston doesn’t shift, none of the following pistons will shift. Valve output is not adjustable.Lubricant output 0.2 CC per outlet per cycle.
