Central Agencies
Established in the year 1964, at Delhi, India, we "Central Agencies" are one of the ISO Certified 9001 : 2008 organization, offering quality range of Centrifugal machine spares & screens, Vacuum filter unit and its all spares, Rotary clarifier, Drive head unit, Rotary screens & Spares. Our products include Juice Sulphiter , Raw Juice Flow Stabilization System, High Tech. Lime Classifier, Superheated Wash Water System, Transient Heater and Electronic Steam - Water Flow Meter and Solenoid Valves.
Besides, we also supply Automatic Pressure Reducing System, Desuperheating System, Condenser Controls, Auto Continuous Sugar Melter & Molasses Conditioner with Brix and Temp, Control Pneumatic & Electric Actuator a n d Pneumatic Operated On - Of Valve. Owing to features like accurate and precision engineered, dimensional accuracy, sturdy construction, these meet the demands of Cement, Tyre, Paper, Steel, Automobile LPG / Gas, Chemical and Gas Industries.
Preview
4672/21, Ansari Road,,Daryaganj Indraprastha, New Delhi,
New Delhi - 110002
New Delhi - 110002
Contact Details

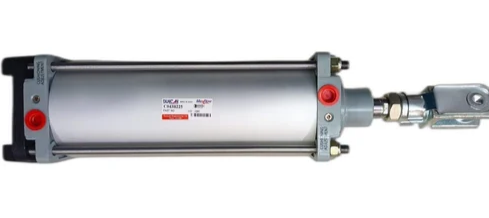

Duncan Medium Bore Air Cylinders
Material a) End Covers : Aluminium b) Piston Rod : SS 420 ground & Burnished (EN8 Hard chrome plated option
Max. operating pressure 10 bar
Piston 1-1/2" 2-1/4" 2-1/2" 3" 4
Medium Compressed Air, Filtered, Lubricated or unlubricated
Pneumatic Connection G 1/4 G 1/4 G 1/4 G 3/8 G 3/8
Piston Rod thread (BSF) 1/2"-16 1/2"-16 1/2"-16 3/4"-12 3/4"-12
Temperature range -10 Degree C to 85 Degree C ( 180 Degree C for viton seals )
Design Pneumatic piston cylinder with adjustable cushioning at both ends
Country of Origin Made in India
Available in 1½”, 2¼”, 2½”, 3” and 4” bore diameter.
Proven performance in a wide range of applications.
Offered with a range of mountings and attachments.
Features like single acting, double ended, reed switch type are also offered.
Cylinders offered with stroke lengths upto 2000 mm with provision of stop tube if required.
New Delhi - Delhi
