Bhurji Machine Tools
We are reputed Manufacturer and Exporter of Surface Grinders Since 1969. " Bhurji Machine Tools " is our Registered Trade Mark which is a renowned name in the field of Surface Grinders. BMT Surface Grinder are famous for accuracy, long life, latest design and after sale services.
Manufacturing since 1973, we are offering well fabricated surface and Surface Grinding Machine including Surface Grinder, Precision Manual Surface Grinders, New Motorized Cross Feed Surface Grinders, etc.
Preview
18 S.M.Ie-Ii 20/2,,Mathura Road, Ballabhgarh,,
Faridabad - 121004
Faridabad - 121004
Contact Details

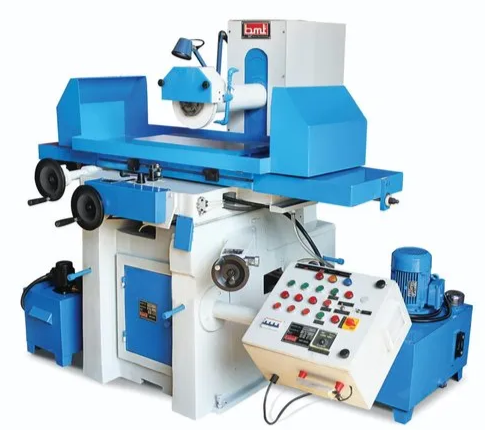

Surface Grinding Machine
ype of Grinding Machine Surface
Model Name/Number AH-630
Brand Bhurji
Grinding Material Metal
Overall Table Working Area (mm) 300 X600 mm
Longitudinal table Travel (mm) 600 mm
Automation Grade Automatic
Grinding Wheel Diameter(mm) 250X20X76.2
Cross Feed Table Travel (mm) 0.05mm=1gra-5.00mm/1 Rev. 1 HP
Table Surface-Spindle Center distance (mm) 400 MM
Max. Grinding Length (mm) 625 MM
Max. Grinding Wheel Speed (rpm) 2800 RPM
Table Load Including Magnetic Chuck (Kg) UPTO 200 KG
Grinding Wheel/Spindle Motor Power (HP/W) 2 HP
X-axis Feed Speed (m/min) DRIVE CONTROL SETTING
Y-axis Feed Speed (m/min) DRIVE CONTROL SETTING
Z-axis Feed Speed (m/min) BOTH ARE AVAILABLE MAUNUAL AND MOTORISED
Max. Table Load (kg) UPTO 200 KG
Micro Feed 0.002 / 1 Div
Hydraulic Tank Capacity 75 Ltr
Spindle Motor 3 Phase 1.5 HP
Hydraulic Pump Motor 1.5 HP
Max. Table Travel 625 x 310 mm
Vertical Down Feed on Hand Wheel 0.01
Dimension 200x19x31.75 mm
Cross Feed on Hand Wheel 0.05mm = 1 Gra - 5.00mm / 1 Rev
Packing Size 84 x 56 x 72 inch
Floor Area Size 96 x 60 x 70 inch
Working Surface of Table 600 x 300 mm
Max. Distance Center of Spindle to Table 400
Auto Cross Feed Increment 5.0 mm
Table Speed 25 m/min
Country of Origin Made in India
Hydraulic Surface Grinder
Grinding Capacity AH 630(600x300mm)
