Bhurji Machine Tools
We are reputed Manufacturer and Exporter of Surface Grinders Since 1969. " Bhurji Machine Tools " is our Registered Trade Mark which is a renowned name in the field of Surface Grinders. BMT Surface Grinder are famous for accuracy, long life, latest design and after sale services.
Manufacturing since 1973, we are offering well fabricated surface and Surface Grinding Machine including Surface Grinder, Precision Manual Surface Grinders, New Motorized Cross Feed Surface Grinders, etc.
Preview
18 S.M.Ie-Ii 20/2,,Mathura Road, Ballabhgarh,,
Faridabad - 121004
Faridabad - 121004
Contact Details

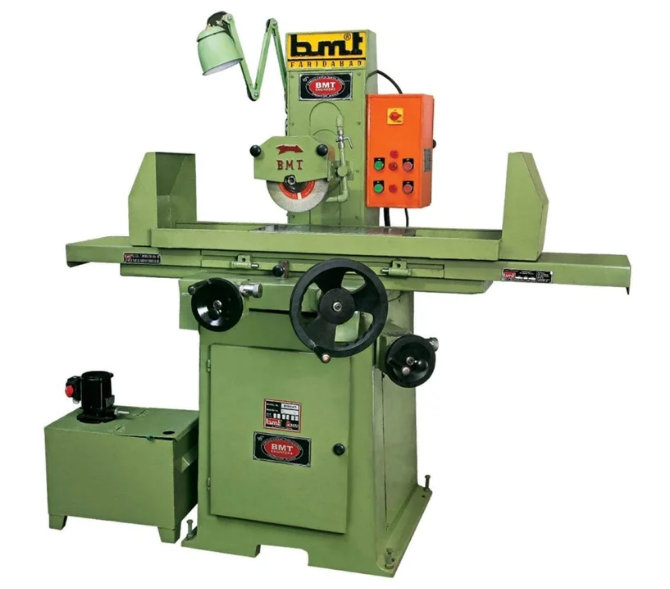

Surface Grinder Machine
Grinding Area 500 x 200 mm
Type of Grinding Machine Surface Grinding Machine
Overall Table Working Area (mm) 500*225
Grinding Material Metal
Automation Grade Manual
Longitudinal table Travel (mm) 525
Grinding Wheel Diameter(mm) 200X13X31.75
Cross Feed Table Travel (mm) 225
Table Surface-Spindle Center distance (mm) 365
Max. Grinding Length (mm) 525
Table Load Including Magnetic Chuck (Kg) 50
Max. Grinding Wheel Speed (rpm) 2880
Grinding Wheel/Spindle Motor Power (HP/W) 1
X-axis Feed Speed (m/min) 525
Y-axis Feed Speed (m/min) 225
Z-axis Feed Speed (m/min) 365
Max. Table Load (kg) 50
Weight 950
Country of Origin Made in India
BMT Manual Surface GrinderGrinding Capacity M 1020 (500x225) specificationMODELS M-1020-OTWorking Surface Of Table 500 X 225Max. Table Travel 525 X 250Magnet Chuck Suitable 200 X 450MMMax. Distance Center ofSpindle to table340Vertical Down Feed on HandWheel0.01MMMicro feed (Elevation) 0.02/1 DivWheel Speed 2800 RPMWheel Dimension Grinding178 X 31.75 X12.7Spindle Motor 3 Phase 1 HP
Faridabad - Haryana
