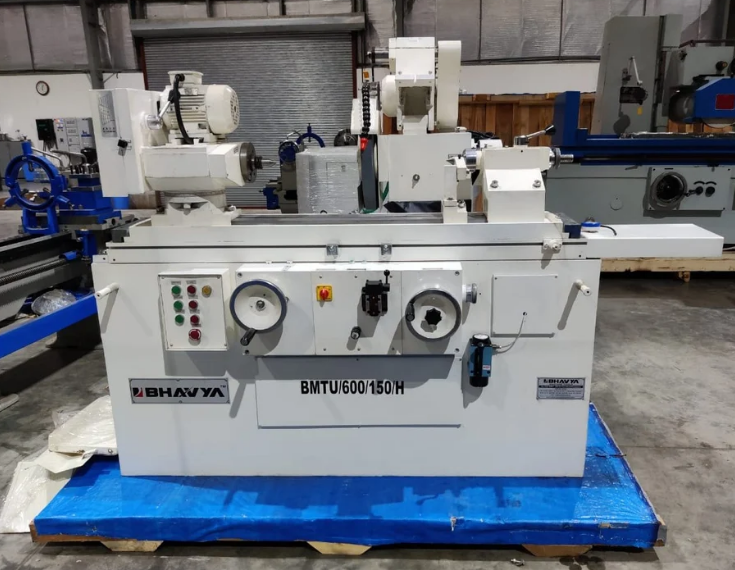

Hydraulic Cylindrical Grinding Machine
Type of Grinding Machine Cylindrical Grinding Machine
Distance between Centers 600
Work Head Swivel 60 Degree
Work Head Center MT-4
Grinding Wheel Diameter(mm) 400 x 40 x 127
Tail Stock Center MT-4
Center Height
mm
150
Distance between Centers
mm
600
Maximum Swivel of Table
Deg.
± 7 Deg.
Table Speed infinitely variable
m/min
0.1 - 4
Grinding Wheel (d x w x b)
mm
400 x 40 x 127
Manual Feed Resolution
mm
0.005 on radius
Wheel head Rapid approach
mm
50
Auto in feed at reversal (Optional)
mm
0.01
Wheel head swivel.
Deg.
±60
No. of work Head Speed
3
Work Head Swivel
Deg.
± 90
Work Head Center
MT
MT- 4
Tail Stock Center
MT
MT- 4
Internal Grinding Spindle (Optional)
mm
Ø60mmx250mmx18000rpm
Work Head Motor
HP
1.0
Wheel Head Motor
HP
3.0
Coolant Pump
HP
0.1
Internal Grinding Spindle Motor
HP
1.0
Hydraulic Motor
HP
1.0
Total HP
HP
6.1
Apx. Total Weight
Kg
1950
