Bharat Hydraulic & Power Packs
Established in the year 1980, BHARAT HYDRAULIC & POWER PACKS is engaged in manufacturing and supplying an impeccable array of Remote Control Jacks, Hydraulic Press, Screw Jacks, Hydraulic Products, Water Testing Pumps, Bottle Jacks and Testing Equipments. Located in Howrah, West Bengal, our organization is manned by experienced and dedicated professionals. We offer our clients an appreciable range of products that includes Pump & Cylindrical Sets, Vertical Workshop Hydraulic Presses, Vertical Down Stroke Hydraulic Presses, Motorized Water Testing Pumps, Testing Machines and a lot more. Our entire product range is acknowledged among the clients for its optimum quality and durable performance. They are tested on well defined parameters under the strict supervision of quality controllers. We fabricate the entire product range in most creative and innovative manner thereby satisfying requirements of the client's efficiently.
Preview
22/2, Kantapukur, 3rd Bye Lane,,P. O. Kadamtala, Ichapur, Howrah,
Howrah - 711101
Howrah - 711101
Contact Details

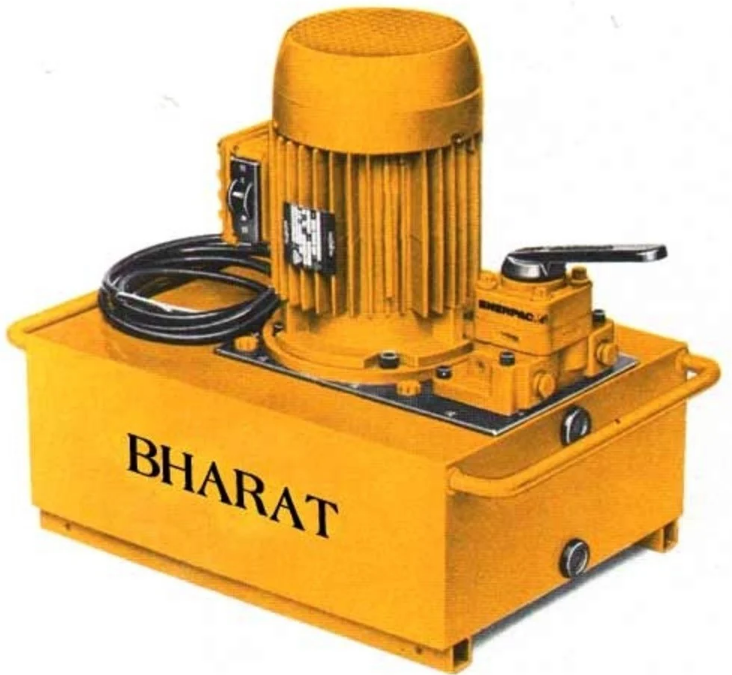

Hydraulic Power Packs
Capacity 110 Ton
Stroke Length 130 mm
Material Alloy Steel
Vehicle Type Heavy Vehicle
Usage/Application Industrial
Country of Origin Made in India
These are two-stage 700 bar units incorporating both a high flow generator pump and a high-pressure radial piston pump-to combine fast approach and retract speeds with maximum power for the work cycle.
Motor Voltage Options:
110-volt one phase* (1)
220-volt one phase* (2)
220-volt three phase* (5)
380-volt three phase* (3)
440-volt three phase* (6)
BPN-50000 only with 220/380-volt three-phase or 440-volt three phase motor.
Valve Options:
None
VM-2 (2-way)
VM-3 or VM-3L*(3-way)
VM-4 or VM-4L*(4-way)
BVS-3 (3-way) (cannot be used on BPN-50000)
BSV-4 (4-way)
VM-3L AND VM-4L are locking valves-essential where full pressure must be maintained, when changing hand valve position or in the hold position. To specify a locking valve add the suffix “L” to the pump model number.
Oil Reservoirs
Usable capacities:
BPN-20000: 5,7.5, 20 OR 40 liters
BPN-30000:20 or 40 liters
BPN-50000: 20 or 40 liters
Howrah - West Bengal
