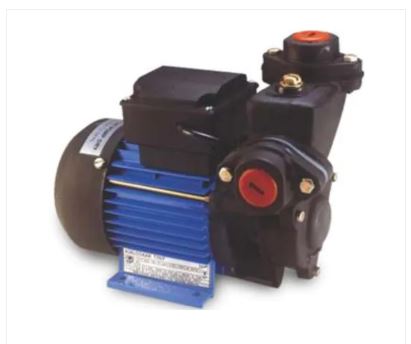

Kirloskar Tiny Mini Family Water Pump

Model Number/Name Tiny Brand Kirloskar Capacity 1600 to 600 LPH Head 3 to15 meters These pumps are designed with aluminium extruded motor body for better heat dissipation and corrosion resistance. Double shielded ball bearing ensures no external lubrication. Impeller is of high tensile brass and delivery casing is of cast iron. These are used in bungalows, hospitals, small fountains and so on. This small sized pump fits in even in tight places. It is made of high quality materials for better performance and longer life. Features Aluminum extruded motor body for better heat dissipation and corrosion resistance Motor can withstand wide voltage fluctuation from 180 - 240 Volts Capable of priming up to 3 meters static suction lift without foot valve, at rated head and discharge (IS 8472:1998) Fitted with Thermal Overload Protector (TOP) preventing motor burn out at lower voltage Totally enclosed fan cooled (TEFC) - no entry of dust moisture Capacitor starts and runs motor with IP-44 protection ‘B’ class of insulation Capacitor inside terminal box
