Bestmach
Best Mach is a newly formed business organization which stepped into business world in the year 2003. The organization is engaged in offering a huge variety of products and appliances used in domestic and commercial sectors. Stationed at Chennai, Tamil Nadu (India), our company is engaged in executing its entire business activities as a Sole Proprietorship based business. The products in which we deal include Oscilloscope Machine, Microwave Test Bench, Measuring Instrument, Analytical Instrument and many more. We also provide Maintenance Service to our customers. The gamut of products that we deal in is procured from trusted and reputed vendors who have won the trust of various clients in the market. Our products are easy to install, have longer operational life and give ultimate performance at client’s end. All these features make them in huge demand in market.
Preview
G4, 2/4, JS Tower, Avvaiyar Street,,Meenampakkam /Chennai, Near Airport,,
Chennai - 600027
Chennai - 600027
Contact Details

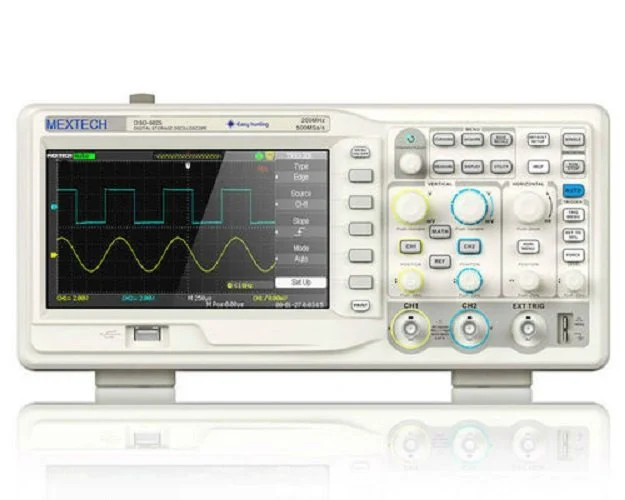

MEXTECH Digital Storage Oscilloscope
Model Name/Number DS5100
Brand MEXTECH
Bandwidth 100MHz
Usage/Application Education
Record Length 8M
Sample Rate(Sample/second) 1GSa/s
Accuracy +-3% full scale for Normal or Average acquisition mode, 10V/div to 10mV/div
Warranty One year
Memory Depth Max.8M for half channels, Max. 4M for all channels
Maximum Input Voltage 300VRMS (10 X)
Weight 5aprx
2 analog channels oscilloscope.
With an external trigger.
Multiple automatic measurements.
Serial decode/trigger options for: UART, LIN, CAN, IIC, SPI.
With integrated digital voltmeter (DVM).
Large (7.0-inch) color display.
Supports SCPI remote command control.
Bandwidth 100MHz
Rise Time ≤ 3.5ns
Max. Sample 1GSa/s
Vertical Resolution 8 bits
Maximum Input Voltage 300VRMS (10 X)
Math +, -, x, ÷, FFT
Additional Information:
Delivery Time: 2 to 3 week
Chennai - Tamil Nadu
