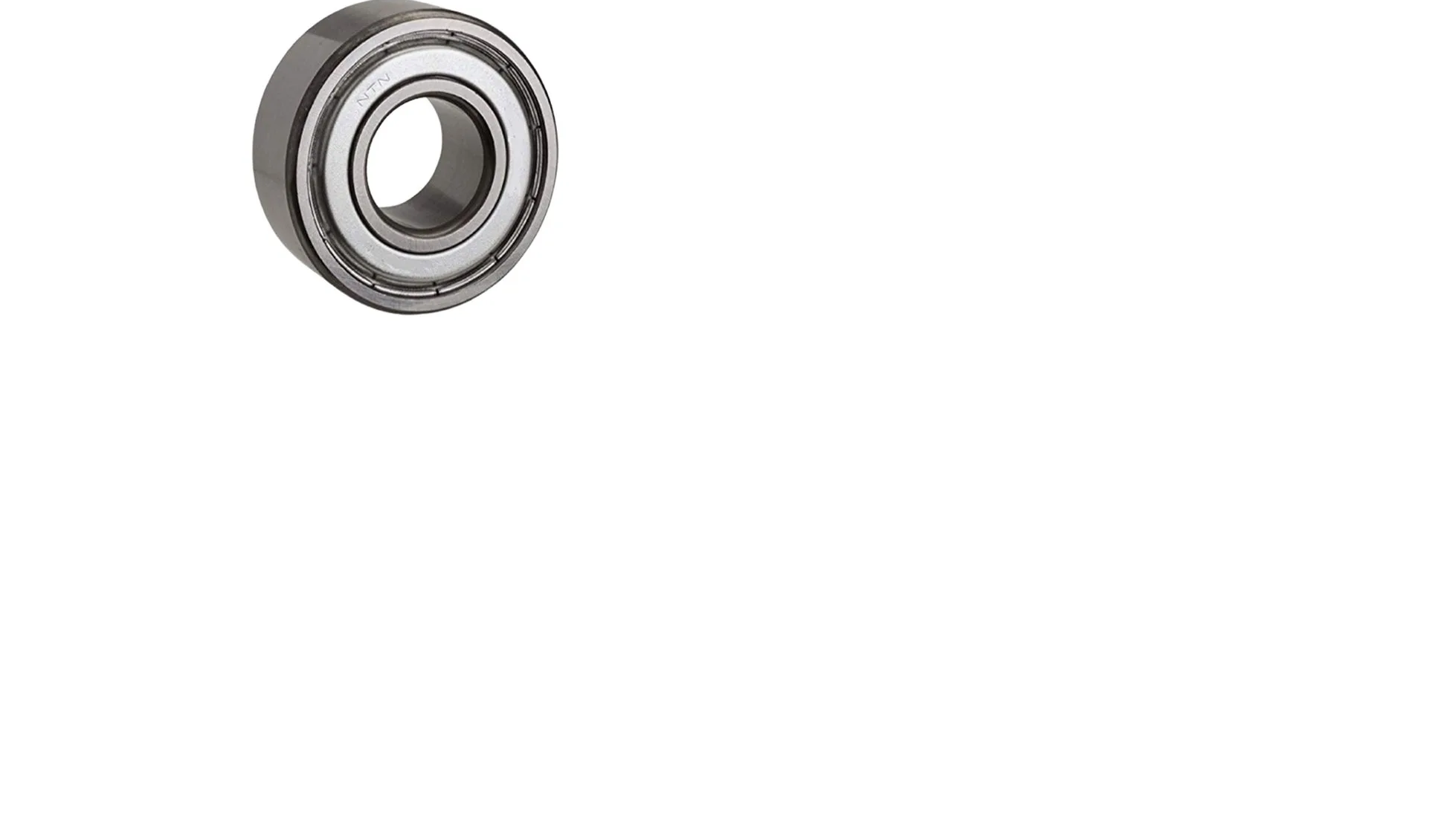

SKF 6202-2Z Deep Groove Ball Bearing

Material Stainless Steel Brand SKF Outside Diameter 35mm Mass Bearing 0.048kg Model 6202-2Z Shoulder Diameter 21.7mm Recess Diameter 30.5mm Dimensional Tolerances P6 Radial Run-Out P5 Shape Round Bore Diameter 15mm Width 11mm Chamfer Dimension 0.6mm Abutment Dimension: da min. 19.2 mm Diameter of shaft abutment da max. 21.6 mm Diameter of shaft abutment Da max. 30.8 mm Diameter of housing abutment ra max. 0.6 mm Radius of shaft or housing fillet Calculation Data: Basic dynamic load rating C 8.06 kN Basic static load rating C0 3.75 kN Fatigue load limit Pu 0.16 kN Reference speed 43 000 r/min Limiting speed 22 000 r/min Minimum load factor kr 0.025 Calculation factor f0 13 Toerances and Clearances: Bearing data Tolerances : Normal (metric) , P6 , P5 , Normal (inch) Radial internal clearance : Matched bearing pairs , Stainless steel d < 10 mm , Other bearings Bearing Interfaces Seat tolerances for standard conditions Tolerances and resultant fits View Complete Details
