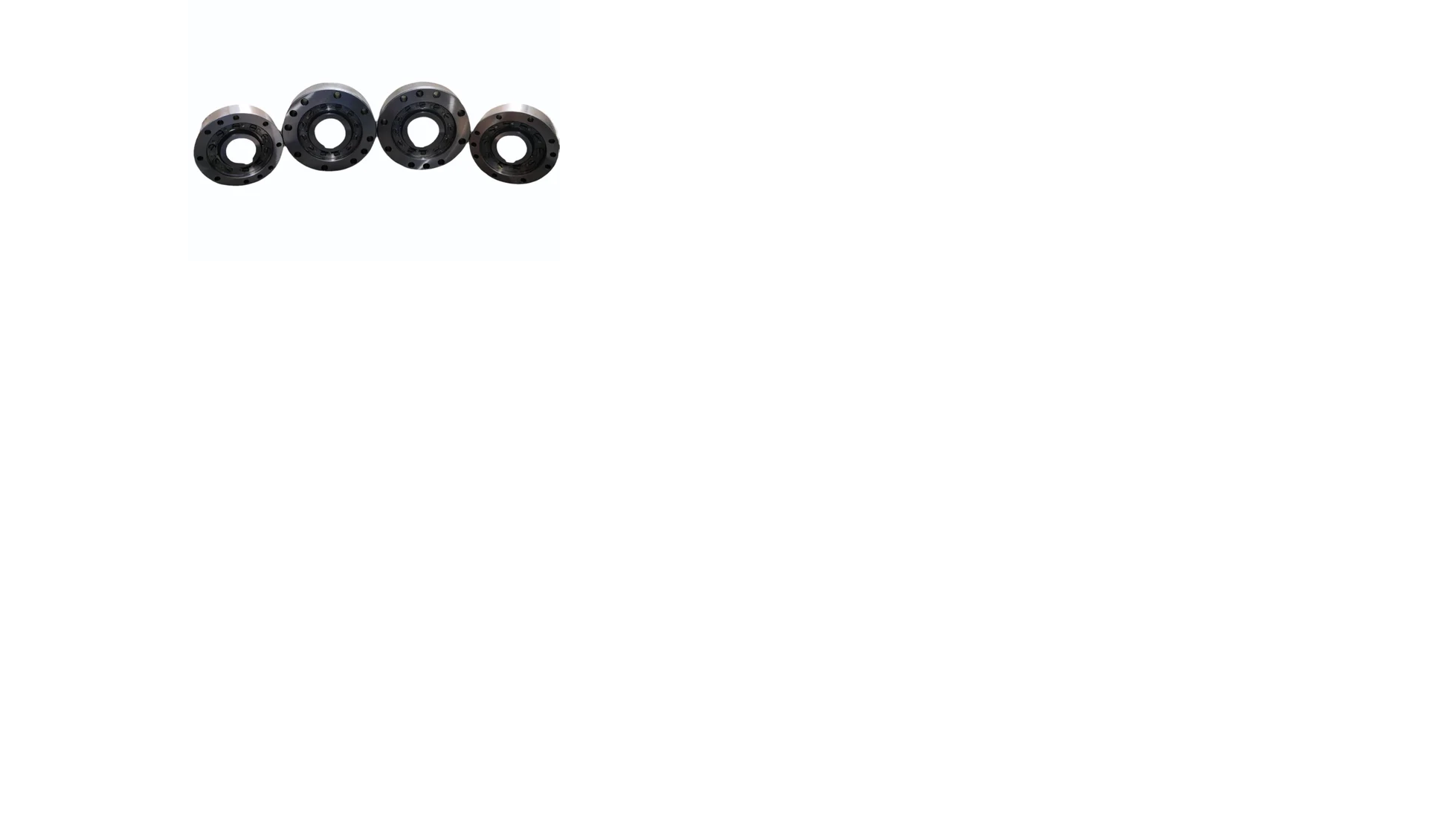

Free Wheel Clutch

Vehicle Type Heavy Vehicle Material Alloy Steel Shape Round Inner Diameter 20 Height 24 Weight 750GM Operating Temperature working temperatures below -40 DegreeC and above +100 DegreeC Usage Suitable for backstop, or overrunning clutch applications. Country of Origin Made in India The series RSXM completes teh small to medium backstop range, which commenced with the highly successful RSCI programme. Type RSXM is a centrifugal lift off sprag type freewheel with the inner race rotating. Only the inner race is designed for freewheeling. It is a non self-supported type. Bearings must be provided to ensure concentricity of the inner and outer races and support axial and radial loads, as shown overleaf. Concentricity and run-out limits must be observed. The RSXM type accepts all types of lubricant currently used in power transmission equipment. It is possible to mount these freewheels directly in gear-boxes without seperate lubrication. An oil mist ist generally sufficient. Grease lubrication may be acceptable if the unit works mostly in overrunning condition, as on E-motors. When used as a backstop, it must be checked that the overrunning speed will not go below the minimum speed given in the characteristic table. Additional Information: Item Code: 84836091 Production Capacity: 10000 PC/ MONTH Delivery Time: 1 WEEK Packaging Details: SINGLE
