Atal Hose & Engg Works Pvt. Ltd.
Atal Hose & Engg Works Pvt. Ltd.
ncorporated in the year 1993, Atal Hose & Engineering Works (P) Ltd is a reputed concern that is engaged in manufacturing and supplying a wide range of Hydraulic and Industrial Hoses. These products are renowned for their high performance, abrasion resistance and durability. Our sophisticated infrastructure and technical expertise, backed by an industrial experience in the field of structural fabrication ensures strict adherence to industry guidelines and quality control measures. The organization was promoted by a group of engineering technicians who strive to provide high quality products and systems with easy operation and reliable performance. We commenced our operations as suppliers of hydraulic & industrial hoses, and gradually expanded our domain by setting up a production unit at Bahadurgarh, Haryana. Today, we are a reputed name in providing quality products and technical service as per the specific requirements of our clients. The credibility that we have acquired in the market is owing to the visionary approach and efforts of our mentor Mr. Gagan Gupta.
Preview
Plot No. 1407, Modern Industrial Estate,,Red Cross Road, Phase II, Mie B, Bahadurgarh,
Bahadurgarh - 124507
5 from 1 reviews
Contact Details

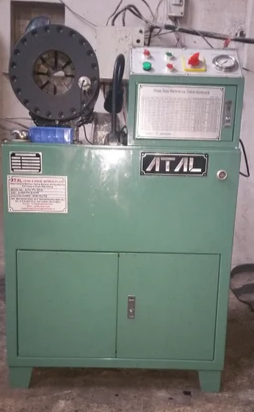

Hydraulic Hose Crimping Machine

Hydraulic Hose Crimping Machine

Model AHCM-500 Machine Type Hose/Pipe Crimping Machine, Cap Crimping Machine, Cable Crimping Machine Machine Structure Horizontal Automatic Grade Automatic Brand ATAL HOSE & ENGG WORKS AHCM-500 HOSE CRIMPING MACHINE Type AHCM-500 Crimp range 1/4” to 2”(6-51 MM) R1, R2,4SP,4SH Crimping force 450T Die length 65 MM LENGTH 1/4” TO 1” & 80 MM LENGTH 1.1/4” TO 2” Die size For high pressure hose 1/4” to 2” ( 10 DIE SET ) Die size For low pressure hose 1/4”, 5/16”,3/8”,1/2” (optional at extra cost) Micro meter Scale accuracy 0.02mm Open time 1.5s Close time 8s Maximum opening 120mm Rated press 31.5mpa Noise level 65db Packing Dimension 800mm*500mm*1200mm Weight 350 kg Motar ABB/SIEMANS 440V (3PHASE)/ 220V OPTIONAL WITH LOCAL BRAND MADE OIL TANK CAPACITY 150 LTR MAX Dimension 800mm*500mm*1200mm Weight 350 kg
